Product Details:
|
| Diagonal Size: | 5.7 Inch | Pixel Format: | 320(RGB)×240 [QVGA] 70PPI |
|---|---|---|---|
| Active Area: | 115.2(H)×86.4(V) Mm | Bezel Area: | 121.0(H)×92.2(V) Mm |
| Weight: | 220±20g | Environment: | -30 ~ 80 °C |
| Type: | A-Si TFT-LCD, LCM | Configuration: | RGB Vertical Stripe |
| Outline Dim.: | 144(H)×104.6(V) ×13.5(D) Mm | Operating Mode: | TN, Normally White, Transmissive |
| High Light: | LQ057Q3DC12,5.7" TFT LCD Display,320×240 TFT LCD Display |
||

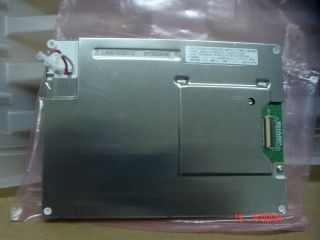

LQ057Q3DC12 5.7 INCH SHARP TFT-LCD 320(RGB)×240 [QVGA] 70PPI PIXEL -30 ~ 80 °C Mocy: Industrial LCD Panel
1. Main Information:
Sharp Corporation (hereafter called Sharp) LQ057Q3DC12 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Life ≥ 50K hours, U/D,L/R Reverse , VGA/QVGA mode selectable. Based on its features, Panelook recommend that this model be applied to Industrial etc
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 121.0×92.2 mm | 144×104.6 mm | 12.3/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Fixation : | Rear mounting holes (4-Ф2.6) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 220±20g | Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/65/40 (Typ.)(CR≥5) | 12 o'clock | 8/21 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | - | 1 pcs | 50K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0±0.5mA | 690±70V | 3.5W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1350/1470V (Max.)(Ta=+25/-10℃) | 30/60KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LNH | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
