Product Details:
|
| Screen Size: | 10.4 Inch | Pixel Number: | 640(RGB)×480 (VGA) 76PPI |
|---|---|---|---|
| Active Area(mm): | 211.2 × 158.4 (H×V) | Screen Type: | LCM, A-Si TFT-LCD |
| Arrangement: | RGB Vertical Stripe | Work Mode: | TN, Normally White, Transmissive |
| Highlight: | LQ10D346,10.4 INCH Sharp TFT Displays,640×480 Sharp TFT Displays |
||

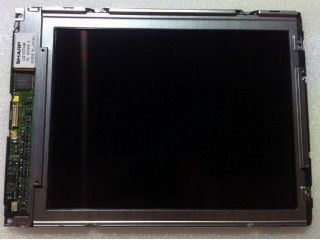

LQ10D346 10.4 INCH SHARP TFT-LCD 640(RGB)×480 (VGA) 76PPI PIXEL Industrial LCD Panel
1. Main Information:
LQ10D346 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp). Based on its features, Panelook recommend that this model be applied to Industrial etc.
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - |
| Interface Features : | Position | Type | Interface | |||
|---|---|---|---|---|---|---|
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 31 pins | DRGB-31P1C6B-010D | ||||
