Product Details:
|
| Diagonal Size: | 8.4 Inch | Pixel Format: | 640(RGB)×480 [VGA] 94PPI |
|---|---|---|---|
| Active Area: | 170.88(H)×129.6(V) Mm | Type: | A-Si TFT-LCD, LCM |
| Configuration: | RGB Vertical Stripe | Operating Mode: | TN, Normally White, Transmissive |
| Light Source: | CCFL [1 Pcs] , W/O Driver | ||
| High Light: | LQ9D168K,8.4 Inch A-Si TFT LCD,640×480 A-Si TFT LCD |
||
LQ9D168K 8.4 INCH SHARP TFT-LCD 640(RGB)×480 (VGA) 94PPI PIXEL Industrial LCD Panel
1. Main Information:

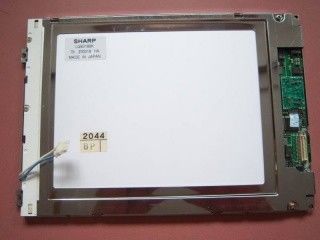

LQ9D168K is a 8.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. Based on its features, Panelook recommend that this model be applied to Industrial etc
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.267×0.270 [94PPI] | 0.089×0.270 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.88(H) × 129.6(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | - |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | - | - | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
