Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm

Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm
Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm

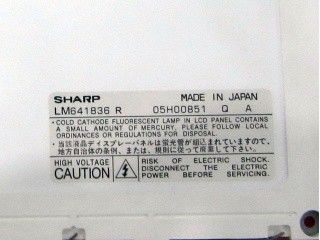

Large Image :  Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm

Product Details:
Place of Origin: Japan
Brand Name: SHARP
Certification: IS09001
Model Number: LM641836R
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Original Factory Package
Delivery Time: Working Day:1-3 Days
Payment Terms: T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability: 500

Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm

Description
Panel Size: 9.4 Resolution: 640(RGB)×480, VGA
Panel Type: CSTN-LCD, LCM Bezel Area(mm): 201.4 × 153.4 (H×V)
Max. Ratings: -25 ~ 60 °C Outline(mm): 260 × 174 (H×V×D)
Arrangement: Rectangle Work Mode: STN, Black/White Mode, Transmissive
Active Area: 191.97(W)×143.97(H) Mm Lamp Type: 1 Pcs CCFL , Without Driver
Highlight:

LM641836R

,

9.4 INCH SHARP TFT LCD

,

640×480 SHARP TFT LCD

Sharp LM641836R Application Details

Basic Info : Panel Brand Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm 0 Panel Model LM641836R
Diagonal Size 9.4" Application
  • Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm 1
Panel Type FSTN-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 45 °C Storage Temp. -25 ~ 60 °C



Sharp LM641836R Mechanical Details

Pixel Features : Pixel Format 640×480 [VGA] Dot Pitch 0.30×0.30 mm (H×V)
Configuration Rectangle Pixel Pitch 0.30×0.30 mm (H×V) [84PPI]
Mechanical Size : Display Area 191.97×143.97 mm (H×V) Bezel Area 201.4×153.4 mm (H×V)
Outline Dim. 260×174 mm (H×V) Outline Depth 7.0 (Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Other Features : Weight 340g Surface



Sharp LM641836R Optical Details

Basic Information : Brightness 70 cd/m² (Typ.) Contrast Ratio 11:1 (Typ.) (Transmissive)
Viewing Angle - Optical Mode STN, Black/White mode, Transmissive
Viewing Direction - Response Time 550 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity - Color Numbers Monochrome



Sharp LM641836R Electronics Details

Power Consumption : 2.18W (Typ.)



 whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 191.97(W)×143.97(H) mm, outline size of 260(W)×174(H) mm, viewing area size of 201.4(W)×153.4(H) mm, net weight of 340g. As a STN, Black/White mode, Transmissive LCM product, LM641836R can provides 70 cd/m² display brightness 11:1 transimissive contrast ratio , and response time of 550 (Typ.)(Tr+Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed. LM641836R utilizes Parallel Data (1ch, 4-bit) as it's signal inputting systerm Connector. For more latest product detail of LM641836R We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Sharp or it's distributor.

Rectangle LM641836R 640×480 9.4 Inch Sharp TFT LCD Display 191.97(W)×143.97(H) mm 2
