Product Details:
|
| Screen Size: | 8.0 Inch | Pixel Number: | 640×480 (VGA) 99PPI |
|---|---|---|---|
| Active Area(mm): | 163.18 × 122.38 (H×V) | Bezel Area(mm): | 173.0 × 132.4 (H×V) |
| Max. Ratings: | -25 ~ 60 °C | Screen Type: | LCM , FSTN-LCD |
| Outline(mm): | 216 × 152.4 (H×V×D | Response: | 80/70 (Typ.)(Tr/Td) Ms |
| Signal Type: | Parallel Data (4-bit) , 15 Pins Connector | Backlight: | 1 Pcs CCFL , 10K Hours , No Driver |
| High Light: | LM64P122,8.0 INCH Industrial LCD Display,640×480 Industrial LCD Display |
||

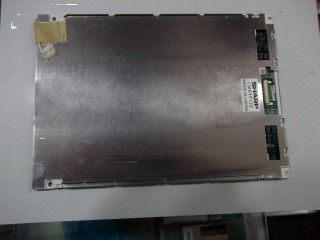

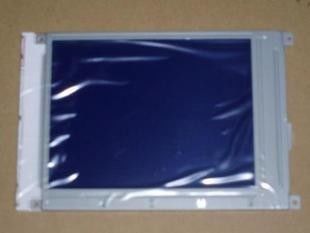

LM64P122 8.0 INCH SHARP TFT-LCD 640×480 (VGA) 99PPI PIXEL -25 ~ 60 °C Industrial LCD Panel
1. Main Information:
Sharp Corporation (hereafter called Sharp) LM64P122 is a 8.0 inch diagonal FSTN-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 45°C , a storage temperature range of -25 ~ 60°C . Based on its features, Panelook recommend that this model be applied to Industrial etc
| Pixel Features : | Number of Pixel | 640×480 [VGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.255×0.255 mm | Pixel Pitch(W×H) | 0.255×0.255 mm [99PPI] | |
| Physical Size : | Active Viewing | 163.18(W)×122.38(H) mm | Overall Dim. | 216(W)×152.4(H) mm |
| Bezel Opening | 173.0(W)×132.4(H) mm | Overall Depth | 5.9 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Detail : | Mass | 250g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 18/27mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 390/610mW (Typ./Max.) | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 5.0/5.5mA (Typ./Max.) | Input Voltage | 320V (Typ.) | ||
| Frequency | - | Turn-on Voltage | 1000/1500V (Min./Max.) | |||
| Consumption | 1.6W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LNH | |
| Backlight Driver : | No | |||||
5. FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Contact Person: Ms. Shirley
Tel: +8613352991648
Fax: 852-3-1828535
