Product Details:
|
| Screen Size: | 6.0 Inch | Pixel Number: | 640×480 (VGA) 133PPI |
|---|---|---|---|
| Active Area(mm): | 121.58 × 91.18 (H×V) | Bezel Area(mm): | 130.6 × 100.2 (H×V) |
| Max. Ratings: | -25 ~ 60 °C | Screen Type: | LCM, FSTN-LCD |
| Outline(mm): | 167.7 × 122.8 (H×V×D) | Response: | 200/150 (Typ.)(Tr/Td) Ms |
| Work Mode: | STN, Black/White (Negative), Transmissive | Backlight: | 1 Pcs CCFL , 10K Hours , No Driver |
| Highlight: | LM64P11 SHARP TFT LCD,6.0 INCH Sharp TFT Displays,640×480 Sharp TFT Displays |
||

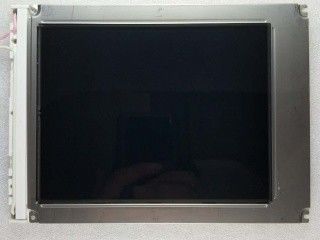

LM64P11 6.0 INCH SHARP TFT-LCD 640×480 (VGA) 133PPI PIXEL -25 ~ 60 °C Industrial LCD Panel
1. Main Information:
The LM64P11 is a 6.0 inch diagonal FSTN-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 45°C , a storage temperature range of -25 ~ 60°C . Based on its features, Panelook recommend that this model be applied to Industrial etc
| Screen Size : | 6.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640×480, VGA | Rectangle | 0.190×0.190 mm | 0.190×0.190 mm [133PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 121.58×91.18 mm | 130.6×100.2 mm | 167.7×122.8 mm | 5.3 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 145g (Typ.) | - | - | ||
| Holes & Brackets : | Face mounting holes (2-Φ2.4, 2-R1.2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 80 cd/m² (Typ.) | STN, Black/White (Negative), Transmissive | 18:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 20/25/20/10 (Typ.)(CR>4) | 200/150 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | Monochrome | - |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 10K(Min.) | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 270V (Typ.) | 4.0mA (Typ.) | 1.1W (Typ.) | ||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LNH | |
