Product Details:
|
| Size: | 3 Inch | Resolution: | 240*400 |
|---|---|---|---|
| Luminance: | 130 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 40/45/55/40 (Typ.)(CR≥10) | Support Color: | 65K/262K |
| Interface Type: | CPU/RGB/SPI , 45 Pins FPC | Contrast Ratio: | 100:1 (Typ.) (TM) 8:1 (Typ.) (RF) |
| Touch Panel: | Without | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | TM030LDHT2,3 Inch Transflective TFT LCD,Tianma TFT LCD |
||

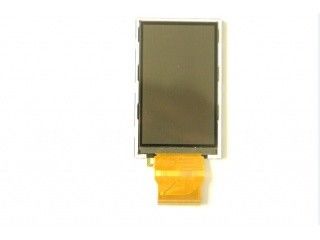

3 Inch Transflective TFT Panel TM030LDHT2 Without Touch Panel
1. Main Information:
TM030LDHT2 is a 3.0" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Portrait type, Transflective, WLED Backlight , R-EVT; Backlight: Serial 1LED 3LED 4LED Optional. Based on its features, this model be applied to Handheld & PDA etc.
2. TIANMA TM030LDHT2 Mechanical Features:
| Panel Size : | 3 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×400, WQVGA | RGB Vertical Stripe | 0.054×0.162 mm | 0.162×0.162 mm [156PPI] | |
| Mechanical Size | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 38.88×64.8 mm | 39.68×65.6 mm | 47.28×76.4 mm | 2.4±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:5 (W : H) | Portrait type | - | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 18.3g | Clear, Hard coating (3H) | ||
3. TIANMA TM030LDHT2 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 130 cd/m² (Typ.) | ECB, Normally White, Transflective | 100:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 40/45/55/40 (Typ.)(CR≥10) | 6 o'clock | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 65K/262K | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 34% | 48% | 36% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 36% | 26% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 6.85% (Typ.) |
4. TIANMA TM030LDHT2 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 4S1P | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 12.8V (Typ.) | 256mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
