Product Details:
|
| Size: | 8 Inch | Resolution: | 640×480 |
|---|---|---|---|
| Luminance: | 320 Cd/m² (Typ.) | View Direction: | 6 O'clock |
| Viewing Angle: | 65/65/65/65 (Typ.)(CR≥10) | Support Color: | 262K |
| Contrast Ratio: | Contrast Ratio | Operating Mode: | TN, Normally White, Transmissive |
| Light Source: | CCFL [1 Pcs] , 50K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -25 ~ 70 °C |
| High Light: | FG080000DNCWA-T1,8 Inch TFT Touch Panel,640*480 TFT Touch Panel |
||

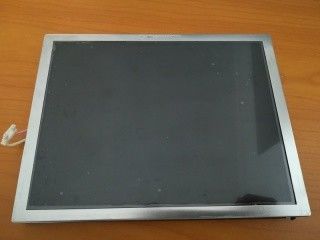

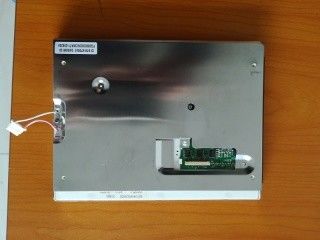

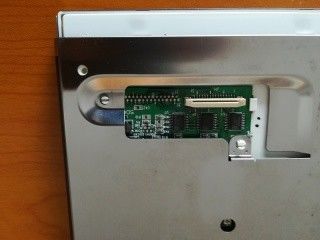

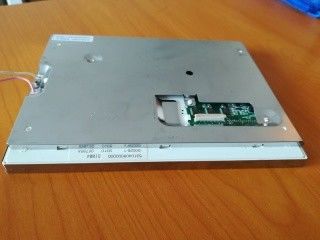

8 Inch 6400*480 TFT LCD With 8-wire Resistive Touch Panel FG080000DNCWA-T1
1. Main Information:
The FG080000DNCWA-T1 is a 8.0 inch diagonal a-Si TFT-LCD display panel product from DataImage, Inc.with an integral CCFL backlight system, without backlight driver, touchscreen 8-wire Resistive Touch.
It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -25 ~ 70°C .
It's general features are following: With Touch, Life ≥ 50K hours, U/D,L/R Reverse, Matte .
Based on its features, this model be applied to Industrial etc.
2. Data Image FG080000DNCWA-T1 Mechanical Features:
| Panel Size : | 8 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.0845×0.2535 mm | 0.2535×0.2535 mm [100PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 162.24×121.68 mm | - | 183×141 mm | 16.2±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | Without touch controller | - | 8-wire Resistive Touch | |
| Fixation : | Rear mounting holes (4-Φ2.2) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 505g (Typ.) | Antiglare, Hard coating | ||
3. Data Image FG080000DNCWA-T1 Optical Details:
| Basic Information : | Luminance | 320 cd/m² (Typ.) | Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/35 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/65/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.293; Wy:0.345 | Support Color | 262K (6-bit) |
| Color Temperature | 7393K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
4. Data Image FG080000DNCWA-T1 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 6.0±1.0mA | Input Voltage | 777/806/831V (Min./Typ./Max.) | ||
| Frequency | 50±10KHz | Turn-on Voltage | 1210/1580V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02VS-1 | 1 pcs | 4.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
