Product Details:
|
| Diagonal Size: | 5.7 Inch | Pixel Format: | 640(RGB)×480 [VGA] 139PPI |
|---|---|---|---|
| Active Area: | 116.16(H)×87.12(V) Mm | Bezel Area: | 120.2(H)×91.2(V) Mm |
| Weight: | 165/175g (Typ./Max.) | Environment: | -30 ~ 80 °C |
| Type: | A-Si TFT-LCD, LCM | Configuration: | RGB Vertical Stripe |
| Outline Dim.: | 135(H)×104.6(V) ×10.9(D) Mm | Light Source: | WLED [9S2P×2CN] , 50K Hours , W/O Driver |
| Highlight: | NL6448BC18-03F,5.7 INCH NEC TFT Display,139PPI NEC TFT Display |
||

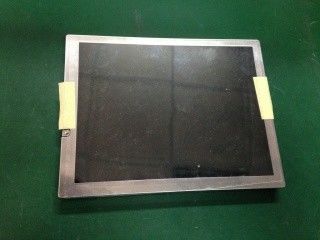

NL6448BC18-03F 5.7 INCH NEC TFT-LCD 640(RGB)×480 [VGA] 139PPI PIXEL -30 ~ 80 °C industrial LCD panel
1. Main Information:
NL6448BC18-03F is a 5.7" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Landscape / Portrait, Wide Temperature, Hight Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc.
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.0605×0.1815 mm | 0.1815×0.1815 mm [139PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 116.16×87.12 mm | 120.2×91.2 mm | 135×104.6 mm | 10.4±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape / Portrait | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 165/175g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | TN, Normally White, Transmissive | 850:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 9 o'clock | 80/80/80/80 (Typ.)(CR≥10) | 3/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6963K | 262K (6-bit) | X:0.300; Y:0.350 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 80% | 62% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 61% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top and Bottom) | 50K(Typ.) | 9S2P×2CN | 2 strings × 2CN | Replaceable (57LHS02) | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 29.7/34.2V (Typ./Max.) | 25/27.5mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM08B-SRSS-TB | 2 pcs | 8 pins | 1.0 mm | BLE-8PINS-ACACNNNN | |
