Product Details:
|
| Diagonal Size: | 10.4 Inch | Pixel Format: | 640(RGB)×480 [VGA] 76PPI |
|---|---|---|---|
| Active Area: | 211.2(H)×158.4(V) Mm | Bezel Area: | 215.4(H)×161.8(V) Mm |
| Interface Type: | CMOS (1 Ch, 6-bit) , 31 Pins Connector | Environment: | 0 ~ 50 °C |
| Type: | A-Si TFT-LCD, LCM | Configuration: | RGB Vertical Stripe |
| Outline Dim.: | 243(H)×185.1(V) ×11.2(D) Mm | Operating Mode: | SFT, Normally Black, Transmissive |
| High Light: | 31 Pins NEC TFT LCD,10.4 INCH NEC TFT LCD,NL6448AC33-29 |
||

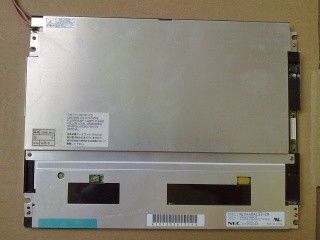

NL6448AC33-29 10.4 INCH NEC TFT-LCD 640(RGB)×480, VGA, 76PPI PIXEL 0 ~ 50 °C industrial LCD panel
1. Main Information:
NL6448AC33-29 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, With Inverter, 180° Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 215.4(H) × 161.8(V) |
| Outline Dim.(mm) | 243(H) × 185.1(V) | Depth(mm) | 10.5/11.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 525g (Typ.) | Treatment | Clear, Antireflection |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VCC) | Current Supply | 400/300mA (Typ.)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.25V | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9C-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS31) | Quantity | 2 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 510V (Typ.) | Current Supply | 2.0/5.0mA (Min./Typ.) | ||
| Frequency | 50/54/58KHz (Min./Typ./Max.) | Startup Voltage | 840/1265V (Min.)(Ta=+25/0℃) | |||
| Consumption | 5.1W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | LZ-5P-SL-SMT | 1 pcs | 5 pins | 1.25 mm | ||
| JAE | IL-Z-3PL-SMTY | 1 pcs | 3 pins | 1.25 mm | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.48A (Typ.) | ||
| Consumption | 5.76W (Typ.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
