Product Details:
|
| Diagonal Size: | 5.5 Inch | Pixel Format: | 320(RGB)×240 [QVGA] 72PPI |
|---|---|---|---|
| Active Area: | 111.36(H)×83.52(V) Mm | Weight: | 330/335g (Typ./Max.) |
| Interface Type: | Analog RGB 24 Pins Connector | Environment: | 0 ~ 70 °C |
| Type: | A-Si TFT-LCD , LCM | Configuration: | RGB Vertical Stripe |
| Outline Dim.: | 134(H)×110(V) Mm | Light Source: | CCFL [1 Pcs] , With Inverter |
| High Light: | NL3224AC35-10,5.5 INCH industrial LCD panel,24 pins industrial LCD panel |
||

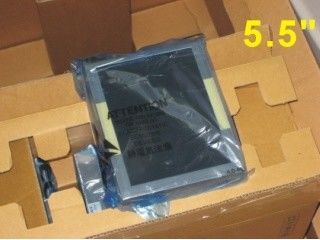

NL3224AC35-10 5.5 INCH NEC TFT-LCD 320(RGB)×240, QVGA, 72PPI PIXEL 0 ~ 70 °C industrial LCD panel
1. Main Information:
NL3224AC35-10 is a 5.5" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by Panelook in the following: With Inverter, U/D,L/R Reverse, Glossy . Based on its features, Panelook recommend that this model be applied to Industrialetc.
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.116×0.348 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.348×0.348 (H×V) [72PPI] | |
| Mechanical Size : | Active Area(mm) | 111.36(H) × 83.52(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 134(H) × 110(V) | Depth(mm) | 22.0±1.0 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 330/335g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 85:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/25/25 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 16/44 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Full color |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 145mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Analog RGB | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| molex | 52610-2417 | 1 pcs | 24 pins | 1.0 mm | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
