Product Details:
|
| Diagonal Size: | 3.5 Inch | Pixel Format: | 240(RGB)×320 [QVGA] 113PPI |
|---|---|---|---|
| Active Area: | 53.64(H)×71.52(V) Mm | Bezel Area: | 57.64(H)×76.52(V) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Support Color: | 262K 40% NTSC |
| Environment: | -20 ~ 70 °C | Type: | A-Si TFT-LCD, LCM |
| Configuration: | RGB Vertical Stripe | Outline Dim.: | 63.5(H)×85(V) ×7(D) Mm |
| High Light: | NL2432HC22-41K,3.5 INCH Industrial LCD Panel,113PPI Industrial LCD Panel |
||

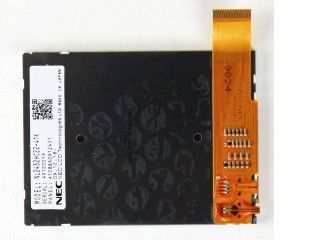

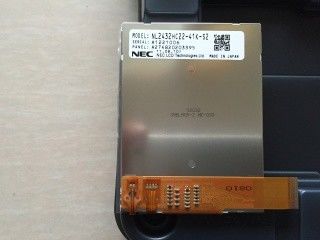

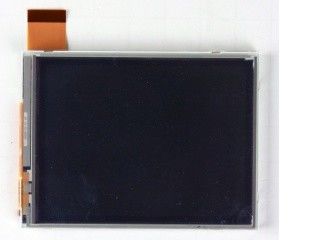

NL2432HC22-41K 3.5 INCH NEC TFT-LCD 240(RGB)×320 [QVGA] 113PPI PIXEL -20 ~ 70 °C industrial LCD panel
1. Main Information:
The NL2432HC22-41K is a 3.5 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Portrait type, With Touch, Transflective, WLED Backlight , SR-NLT, left side 3 in 1 FPC (15mm). Based on its features, Panelook recommend that this model be applied to Handheld & PDA etc
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 53.64×71.52 mm | 57.64×76.52 mm | 63.5×85 mm | 4.2/7.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | - | |
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 43.0/45.0g (Typ./Max.) | Clear, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transflective | 150:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 30/30/30/35 (Typ.)(CR≥5) | 6 o'clock | 7/23 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| Luminance Variation : | 1.43/1.67 (Typ./Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 8/15% (Min./Typ.) | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 16.5/26.0mA (Typ./Max.)(ICC) | 3.0V (Typ.) | 50mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | CMOS (1 ch, 6-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 45 pins | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
