NL2432HC17-07A NEC TFT Panel 50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²)

NL2432HC17-07A NEC TFT Panel  50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²)

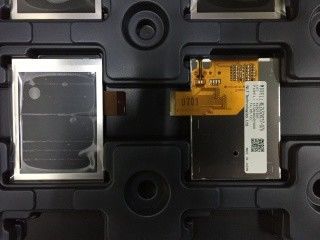

NL2432HC17-07A NEC TFT Panel  50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²) NL2432HC17-07A NEC TFT Panel  50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²) NL2432HC17-07A NEC TFT Panel  50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²)

Large Image :  NL2432HC17-07A NEC TFT Panel 50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²)

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL2432HC17-07A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 40USD

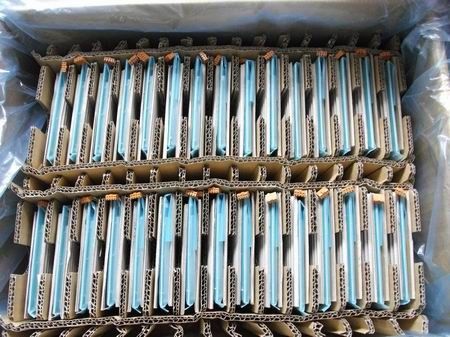

Packaging Details: BOX
Delivery Time: 1 DAY
Supply Ability: 1000PCS

NL2432HC17-07A NEC TFT Panel 50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²)

Screen Size: 2.7 Inch Pixel Number: 240(RGB)×320 (QVGA) 148PPI
Active Area(mm: 41.04 × 54.72 (H×V) Bezel Area(mm): 43.44 × 57.12 (H×V)
Color Depth: 262K 50% NTSC Signal Type: CMOS (1 Ch, 6-bit) + SPI , 45 Pins FPC
Max. Ratings: -30 ~ 80 °C Screen Type: LCM , A-Si TFT-LCD
Arrangement: RGB Vertical Stripe Outline(mm): 50.54 × 68.62 (H×V×D)
High Light:

2.7 INCH NEC TFT Panel




148PPI NEC TFT Panel

NL2432HC17-07A 2.7 INCH NEC TFT-LCD 240(RGB)×320, QVGA, 148PPI PIXEL -20 ~ 70 °C industrial LCD panel


1. Main Information:

The NL2432HC17-07A is a 2.7 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Portrait type, Hight Brightness, WLED Backlight , 2 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Handheld & PDA etc.


2. NEC NL2432HC17-07A Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
550 (Typ.) 50/50/60/30 (Typ.)(CR≥10) 8/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
12 o'clock TN, Normally White, Transmissive 400 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6066K 262K (6-bit) X:0.320; Y:0.340
White Variation : 1.18/1.43 (Typ./Max.)(9 points)



3. NEC NL2432HC17-07A Mechanical Features

Panel Size : 2.7"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
240(RGB)×320 [QVGA] RGB Vertical Stripe 0.171×0.171 [148PPI] 0.057×0.171
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
41.04(H) × 54.72(V) 43.44(H) × 57.12(V) 50.54(H) × 68.62(V) 2.6 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Portrait type 3:4 (H:V) -
Other Detail : Weight Panel Cover Treatment
19.0/21.0g (Typ./Max.) - Clear, Hard coating (3H)


4. NEC NL2432HC17-07A Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.0V (Typ.) 12mA (Typ.) 36mW (Typ.)
Voltage for Display Signals : 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features : Position Signal Type
- CMOS (1 ch, 6-bit) + SPI FPC
FPC Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
      45 pins 1 pcs

5. FAQ:
Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.


Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL2432HC17-07A NEC TFT Panel  50/50/60/30 (Typ.)(CR≥10) 2.7" 550 (Typ.)(cd/m²) 0
