Product Details:
|
| Screen Size: | 4.7 Inch | Pixel Number: | 320×240 (QVGA) 84PPI |
|---|---|---|---|
| Active Area(mm): | 95.97 × 71.97 (H×V | Bezel Area(mm): | 104.0 × 79.5 (H×V) |
| Max. Ratings: | -30 ~ 80 °C | Screen Type: | LCM, FSTN-LCD |
| Arrangement: | Rectangle | Outline(mm): | 129.6 × 92.6 × 7.5 (H×V×D) |
| Treatment: | Antiglare | Backlight: | 1S7P WLED , 40K Hours , No Driver |
| Viewing Angle: | 45/45/35/45 (Typ.)(CR≥2) | ||
| High Light: | SP12Q01L6ALZZ,320×240 Hitachi TFT LCD,4.7 INCH Hitachi TFT LCD |
||
1. Main Information:

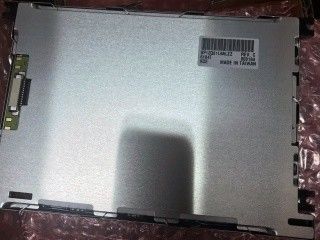

SP12Q01L6ALZZ is a 4.7" diagonal FSTN-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 45/45/35/45 (Typ.)(CR≥2) | 280/280 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | STN, Black/White mode, Transmissive | 20 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome | - |
| Panel Size : | 4.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320×240 [QVGA] | Rectangle | 0.300×0.300 [84PPI] | 0.300×0.300 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.97(H) × 71.97(V) | 104.0(H) × 79.5(V) | 129.6(H) × 92.6(V) | 7.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Mounting : | Face mounting holes (4-R1.5) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 110g (Typ.) | - | Antiglare | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 8.0mA (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (4-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| TOKUTSU | BL-113-12RU | 1.0 mm | 12 pins | 1 pcs | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
