Product Details:
|
| Size: | 7 Inch | Resolution: | 1024×600 |
|---|---|---|---|
| Brightness: | 350 | C/R: | 700:1 |
| View Angle: | 75/75/70/75 | Colors: | 262K/16.2M |
| Storage Temp.: | -30 ~ 70 °C | Operating Temp.: | -20 ~ 60 °C |
| Warranty: | 180 Days | Quality: | New And Original Grade A |
| High Light: | TN AUO TFT LCD,Transmissive AUO TFT LCD,WLED AUO TFT LCD |
||
1.Main Information:

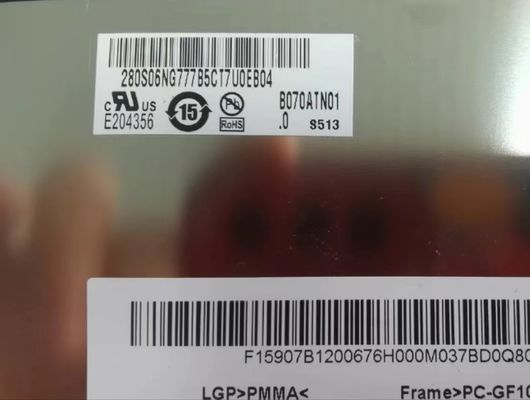

The B070ATN01.0 is a 7Inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. ,with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Glossy . Based on its features, this model be applied to Pad & Tablet, Industrial, Digital Photo Frame, Portable DVD Player etc.
2.AUO B070ATN01.0 Optical Details:
| Pixel Features : | Pixel Format | 1024(RGB)×600 [WSVGA] | Dot Pitch | 0.050×0.150 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.150×0.150 mm (H×V) [169PPI] | |
| Mechanical Size : | Display Area | 153.6×90 mm (H×V) | Bezel Area | 155.6×92.0 mm (H×V) |
| Outline Dim. | 167.25×104.65 mm (H×V) | Outline Depth | 2.9/4.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 100g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
3.AUO B070ATN01.0 Optical Details:
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 16 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.17/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 67% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO B070ATN01.0 Backlight Details:
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Amount | 4S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 12.4/13.2V (Typ./Max.) | Current Input | 120mA (Typ.) | ||
| Consumption | 1.488/1.584W (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
5.AUO B070ATN01 Series Model:
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color | Interface |
| B070ATN01.0 | 7.0" | LCM | 1024×600 | 350 | 700:1 | WLED | 262K/16.2M | LVDS |
| B070ATN01.0 CELL | 7.0" | CELL | 1024×600 | 0 | NO | 262K/16.2M | LVDS | |
| B070ATN01.2 | 7.0" | LCM | 1024×600 | 350 | 700:1 | WLED | 262K/16.2M | LVDS |
6.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
