Product Details:
|
| Size: | 10.1 Inch | Pixel Format: | 1920(RGB)×1200 [WUXGA] 224PPI |
|---|---|---|---|
| Luminance: | 800 Cd/m² (Typ.) | View Direction: | Symmetry |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode: | AHVA, Normally Black, Transmissive |
| Interface Type: | MIPI (4 Data Lanes) , 34 Pins Connector | Light Source: | WLED [6S6P] , 20K Hours , With LED Driver |
| Environment: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | G101UAN02.0,10.1 Inch High Brightness LCD Display,1920×1200 High Brightness LCD Display |
||

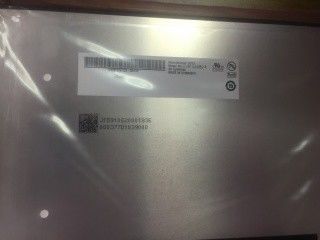

10.1 Inch Hight Brightness TFT LCD Panel G101UAN02.0 With LED Driver
1. Main Information:
G101UAN02.0 is a 10.1" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.With an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Hight Brightness, WLED Backlight, With LED Driver, Reverse I/F .
Based on its features,this model be applied to Industrial, Outdoor High Brightness etc.
2. AUO G101UAN02.0 Mechanical Details:
| Pixel Features : | Pixel Format | 1920(RGB)×1200 [WUXGA] | Dot Pitch | 0.038×0.113 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.113×0.113 mm (H×V) [224PPI] | |
| Mechanical Size : | Display Area | 216.81×135.5 mm (H×V) | Bezel Area | - |
| Outline Dim. | 229.4×150.5 mm (H×V) | Outline Depth | 2.7/5.05 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 170g (Max.) | Surface | Hard coating, Antireflection |
3. AUO G101UAN02.0 Optical Details:
| Basic Information : | Brightness | 800 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4. AUO G101UAN02.0 Backlight Details:
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 33.9/34.8V (Typ./Max.) | Current Input | 17.9mA (Typ./Max.) | ||
| Consumption | 4.3/4.5W (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | - | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
