G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display

G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display
G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display

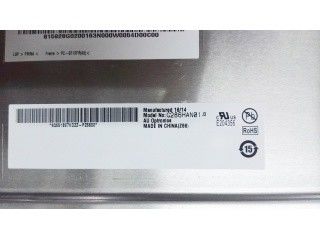

Large Image :  G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display

Product Details:
Place of Origin: TAIWAN
Brand Name: AUO
Certification: ISO9001
Model Number: G286HAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 30
Packaging Details: 4 pcs / box - 810×210×430 mm (L×W×H)
Delivery Time: 1 DAY
Payment Terms: T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability: 500PCS

G286HAN01.0 1/2 Cut Of 31.5" 28.6 Inch Stretched Bar LCD Display

Description
Size: 28.6 Inch Resolution: 1920*540
Brightness: 1000 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Best View On: Symmetry Display Colors: 16.7M 72% NTSC
Signal Interface: LVDS (2 Ch, 8-bit) , 51 Pins Connector Display Mode: AHVA, Normally Black, Transmissive
Lamp Type: WLED , 50K Hours , Without Driver Environment: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
High Light:

G286HAN01.0

,

28.6 Inch Stretched Bar LCD Display

,

51 pins Stretched Bar LCD Display

1/2 Cut Of 31.5" 28.6 Inch G286HAN01.0 Ultra High Brightness Stretched Bar LCD Display



1. Main Information:

    AU Optronics Corp. G286HAN01.0 is a 28.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).

    It's general features are following: Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, Bar Display, Upside I/F, Matte , 1/2 cut of 31.5". Based on its features, t this model be applied to Industrial, Outdoor High Brightness, Stretched Bar LCD etc.



2.  AUO G286HAN01.0 Optical Features:

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
1000 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 16/9 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
Symmetry AHVA, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 93% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Performance  3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -



3.  AUO G286HAN01.0 Mechanical Features:

Panel Size : 28.6 Inch (1/2 cut of 32.0")
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×540 RGB Vertical Stripe 0.36375×0.36375 [69PPI] 0.12125×0.36375
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
698.4(H) × 196.425(V) 702.4(H) × 200.43(V) 731.46(H) × 229.49(V) 15.14/21.34 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type >3:1 (H:V) -
Mounting : Side mounting holes (18-M3) on left, right, up, down bezel
Other Detail : Weight Panel Cover Treatment
2.70Kgs (Typ.) - Antiglare, Hard coating (3H)



4.  AUO G286HAN01.0 Backlight Features:

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 50K(Min.) -
WLED Electrical  Voltage Supply Current Supply Power
38.4/43.2V (Typ./Max.) 120mA (Typ.) 36.86/41.46W (Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
E&T 3707K-S06N-01L 1.0 mm 6 pins 2 pcs BLE-6PINS-AACCCC



5.  FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
