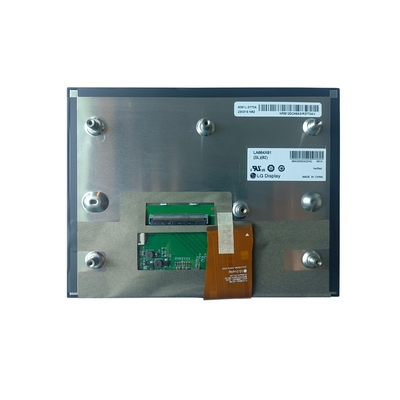

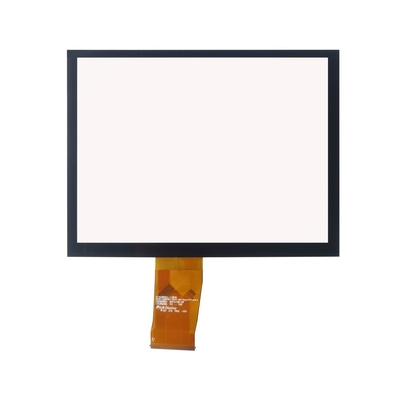

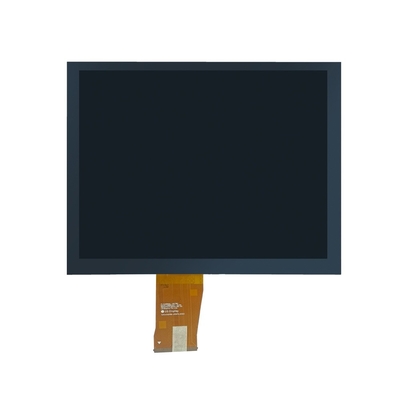

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 152PPI | Luminance: | 920 Cd/m² |
| Outline Dim.: | 186.98(H)×145.08(V) ×17.63(D) Mm | Environment: | Operating Temperature: -40 ~ 75 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.0G (19.6 M/s²) |

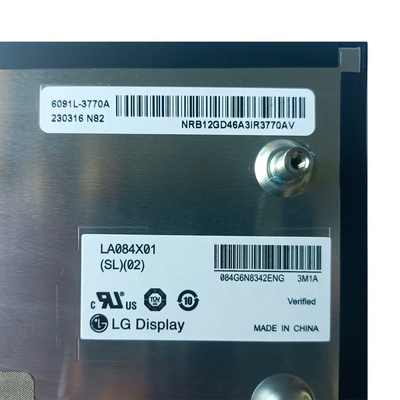

| Basic Detail : | Manufacturer | Model Name | LA084X01-SL02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LA084X01 (SL)(02) | |
| Panel Size | 8.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -40 ~ 75 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 920 cd/m² (Typ.) | Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 16/14 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 62% | sRGB | 86% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0555×0.1665 mm | Pixel Pitch(W×H) | 0.1665×0.1665 mm [152PPI] | |
| Physical Size : | Active Viewing | 170.496(W)×127.872(H) mm | Overall Dim. | 186.98(W)×145.08(H) mm |
| Bezel Opening | - | Overall Depth | 7.5/17.63 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting Pole (6 pcs) | |||
| Other Detail : | Mass | 310/315g (Typ./Max.) | Surface | Antiglare (Haze 13%) |
| Signal Electrical : | Input Current | 35/2/75/0.4mA (Typ.)(IOICC/IDD) | Input Voltage | 1.8/3.3/13.0/-11V (Typ.)(IOVCC/VDD/AVDD/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 8S4P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 55/60mA (Typ./Max.) | Input Voltage | 24±3.2V | ||
| Consumption | 5.28/6.8W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm, outline size of 186.98(W)×145.08(H)×17.63(D) mm, with surface treament of Antiglare (Haze 13%), net weight of 310/315g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LA084X01-SL02 can provides 920 cd/m² display brightness 1100:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 16/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LA084X01-SL02 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 1.8/3.3/13.0/-11V
