Product Details:
|
| Brand: | Sharp | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Brightness: | 200 Cd/m² |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |

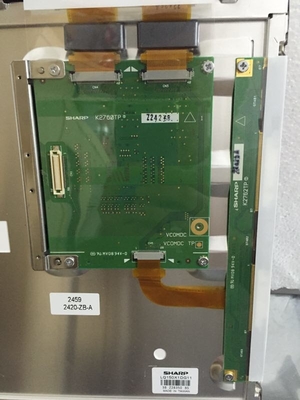

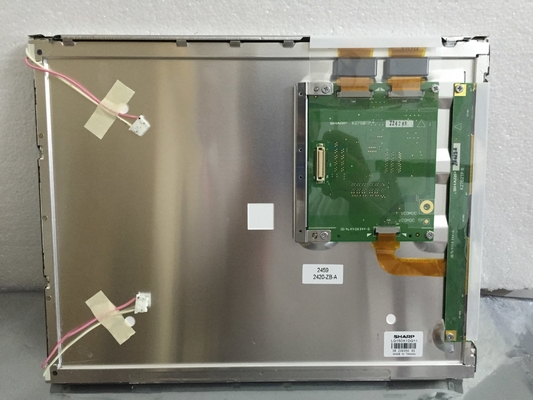

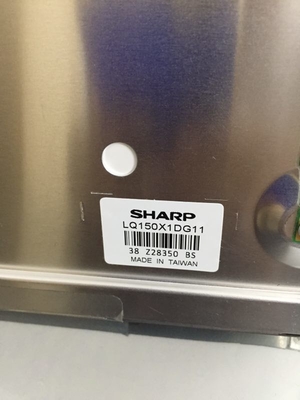

| Basic Detail : | Manufacturer | Model Name | LQ150X1DG11 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 60 °C |
| Vibration Level | 1.0G (9.8 m/s²) |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 10/35 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.35 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 331.3(W)×257.9(H) mm |
| Bezel Opening | 308.2(W)×232.1(H) mm | Overall Depth | 15.9 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (8-M2.5) on left, right bezel | |||
| Other Detail : | Mass | 1.30Kgs (Max.) | Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Signal Electrical : | Input Current | 300mA (Typ.)(ICC) | Input Voltage | 5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (2 ch, 6-bit) | |||
| Logic Voltage for Signals : | GND≤VIL≤0.6V; 2.6V≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FX8-60S-SV | 1 pcs | 0.6 mm | 60 pins | DRGB-60P2C6B-040A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (LQ0DDB5166) | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 2.5/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 690V (Typ.) | ||
| Frequency | 20/60/70KHz (Min./Typ./Max.) | Turn-on Voltage | 850/1450V (Max.)(Ta=+25/0℃) | |||
| Consumption | 8.2W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 331.3(W)×257.9(H) mm, viewing area size of 308.2(W)×232.1(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 1.30Kgs (Max.). As a TN, Normally White, Transmissive LCM product, LQ150X1DG11 can provides 200 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ150X1DG11 utilizes Parallel RGB (2 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 5.0V (Typ.)(VCC).
