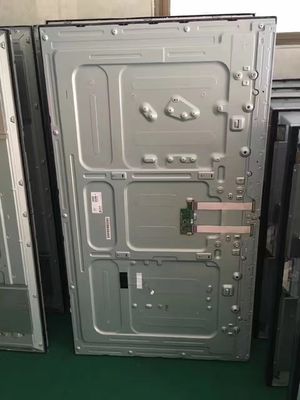

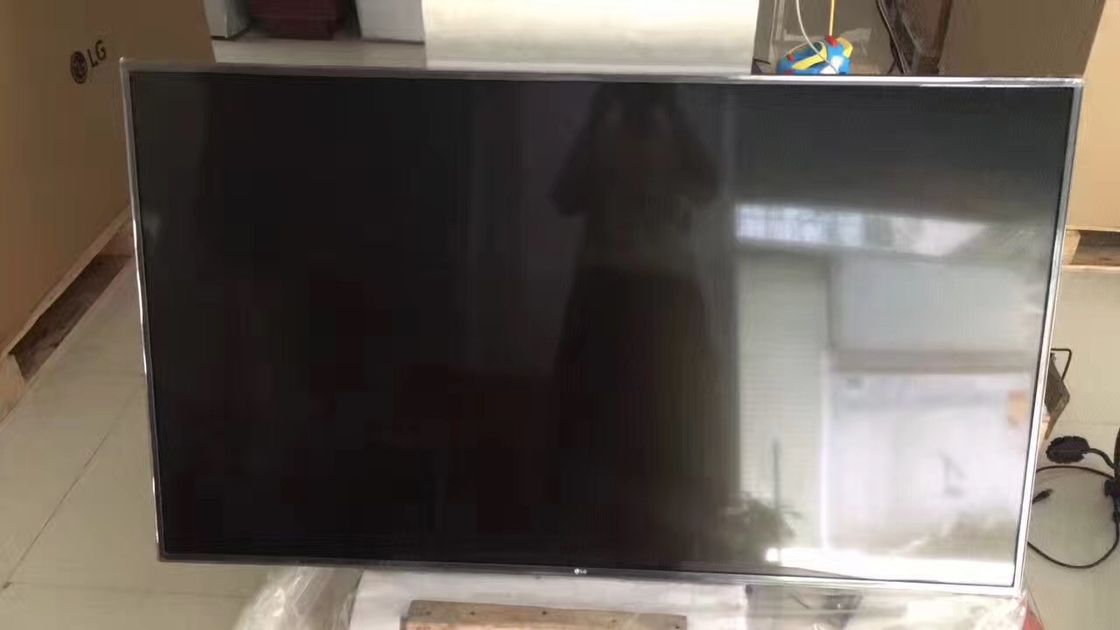

Product Details:
|
| MODEL NUMBER: | LC550EQG-FLM1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 80PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 80PPI High Brightness Lcd Screen,400cd/m2 High Brightness Lcd Screen,400CD/M2 Lcd Display Panels |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LC550EQG-FLM1 | a-Si TFT-LCD , LCM | LC550EQG (FL)(M1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | 8/10 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9966K | 1.07B (10-bit) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 84% | 99% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 85% | 62% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.54 (Max.)(9 points) | ||
| Panel Size : | 55" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.315×0.315 [80PPI] | 0.105×0.315 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 1209.6(H) × 680.4(V) | 1215.6(H) × 685.9(V) | 1235.4(H) × 715.4(V) | 24.8 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 12.0Kgs (Typ.) | - |
Antiglare (Haze 3%), Hard coating (2H)
|
||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 128.7±7.7V | 110±5.5mA | 84.9/90W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | HS100-L08N-N62 | 1.0 mm | 8 pins | 1 pcs | ||
| UJU | HS100-L08N-N62-A | 1.0 mm | 8 pins | 1 pcs | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.7V (Typ.) | 0.96/1.25A (Typ./Max.) | 12.19/15.84W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | EPI | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | TF06L-60S-0.5SH | 0.5 mm | 60 pins | 2 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 18 pcs / box | - | 1440×1140×960 mm (L×W×H) |
