Product Details:
|
| MODEL NUMBER: | LM240WU4-SLB1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 24.0 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1200 (WUXGA) 94PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | WLED TTL Industrial Lcd Display,CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | LM240WU4-SLB1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 24.0" | Alias | LM240WU4 (SL)(B1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.090×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.270×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 518.4(H) × 324(V) | Bezel Area(mm) | 522.4(H) × 328.0(V) |
| Outline Dim.(mm) | 546.4(H) × 352(V) | Depth(mm) | 28.8/40.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (9 pcs) on left, right, up, down bezel | |||
| Other Spec : | Weight | 2.74/2.88Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | S-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 6/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 102% | sRGB | 100% coverage |
| Adobe RGB | 98% coverage | DCI-P3 | 92% coverage | |
| Rec.2020 | 76% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 462/531mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.54/6.38W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 10-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | LVDS-51P2C10B-050A | |
| Backlight Features: | Shape | U shape | Type | CCFL | Position | Direct light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7 pcs | Life Time | 40K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | S14B-PHA-SM3-TB | 1 pcs | 14 pins | 2.0 mm | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Voltage Supply | 24.0V (Typ.) | Current Supply | 3.0/3.5A (Typ./Max.) | ||
| Consumption | 72.0/84.0W (Typ./Max.) | |||||

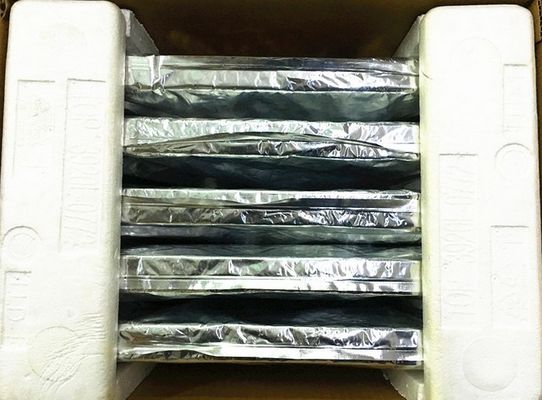

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 5 pcs / box | - | 436×346×618 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
