Product Details:
|
| MODEL NUMBER: | LD470DUN-TFC1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 47INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 46PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED TTL Industrial Lcd Display,CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|

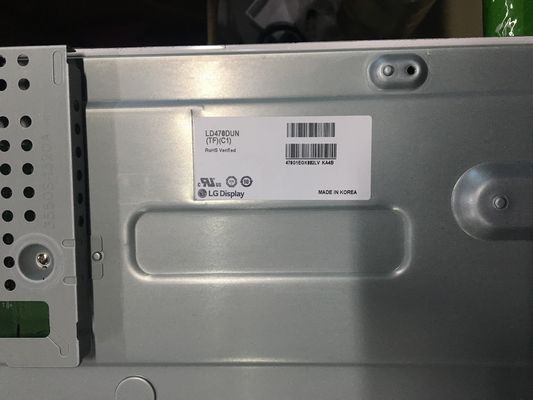

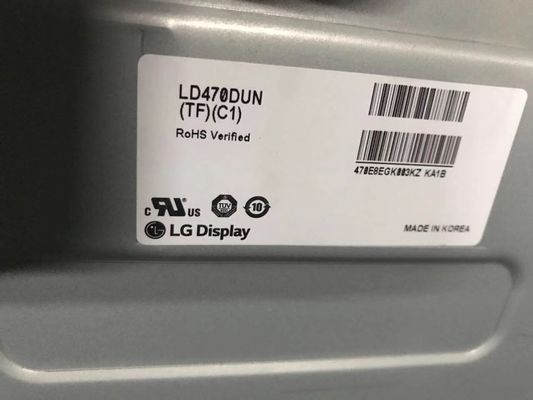

| LD470DUN-TFC1 | a-Si TFT-LCD , LCM | LD470DUN (TF)(C1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 47" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1805×0.5415 mm | 0.5415×0.5415 mm [46PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1039.68×584.82 mm | 1039.98×585.12 mm | 1044.9×590 mm | 36.8/52.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Videowall Seam |
| Flat Rectangle | 16:9 | Landscape / Portrait | 5.2 mm (Active to Active) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 12.2/12.81Kgs (Typ./Max.) | - | Antiglare (Haze 10%), Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 12 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9972K | 1.06B (8-bit + Dithering) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 98% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Direct light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 20022WR-H14B2 | 1 pcs | 14 pins | 2.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0±1.2V | 4.44/5.05A (Typ./Max.) | 106.47/121.22W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.92/1.19A (Typ./Max.) | 10.9/14.17W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 10-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 1440×1140×840 mm (L×W×H) |
