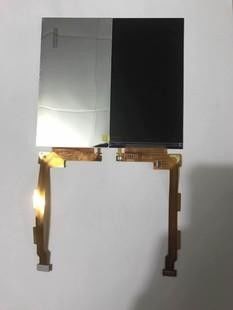

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ047K3SX07 |
|---|---|---|---|
| Brightness: | 400 Cd/m² (Typ.) | Lamp Type: | 10S1P WLED , Without Driver |
| Panel Size: | 4.7INCH | Signal Interface: | MIPI (4 Data Lanes) , 31 Pins FPC |
| Resolution: | 720(RGB)×1280, WXGA, 314PPI | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Brand | SHARP | Model | LQ047K3SX07 |
|---|---|---|---|---|
| Type | LCM Oxide TFT-LCD | Used For | ||
| Screen Size | 4.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 70 °C | Operating Temp. | -20 ~~ 60 °C |
| Pixel Features : | Resolution | 720(RGB)×1280, WXGA | Dot Pitch(mm) | 0.0269×0.0807 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0807×0.0807 (H×V) [314PPI] | |
| Mechanical Size : | Active Area(mm) | 58.104(H) × 103.296(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 61.05(H) × 112.09(V) | Depth(mm) | 1.38±0.15 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 15.0g | Treatment | Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD/AVEE) | Current Supply | 12.5/7.0/7.0mA (Typ.)(ICC/AIDD/AIEE) | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 31 pins | 0.3 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 30.0/33.0V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Consumption | 600mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ047K3SX07 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 314 PPI. As for mechanical detail, it features active area of 58.104(W)×103.296(H) mm, outline size of 61.05(W)×112.09(H)×1.52(D) mm, with surface treament of Hard coating (3H), net weight of 15.0g. As a New Mode2, Normally Black, Transmissive LCM product, LQ047K3SX07 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 10S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
