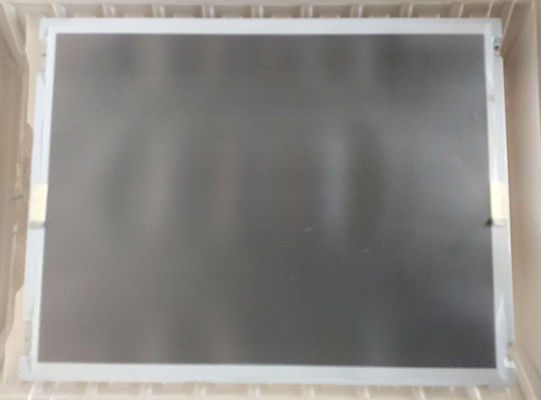

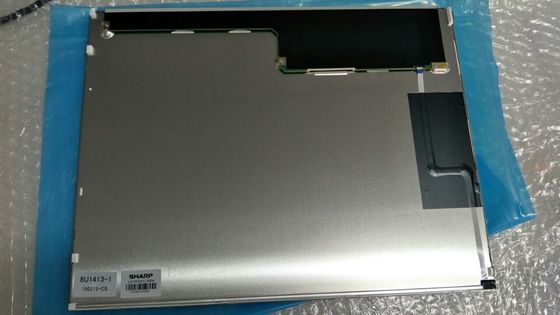

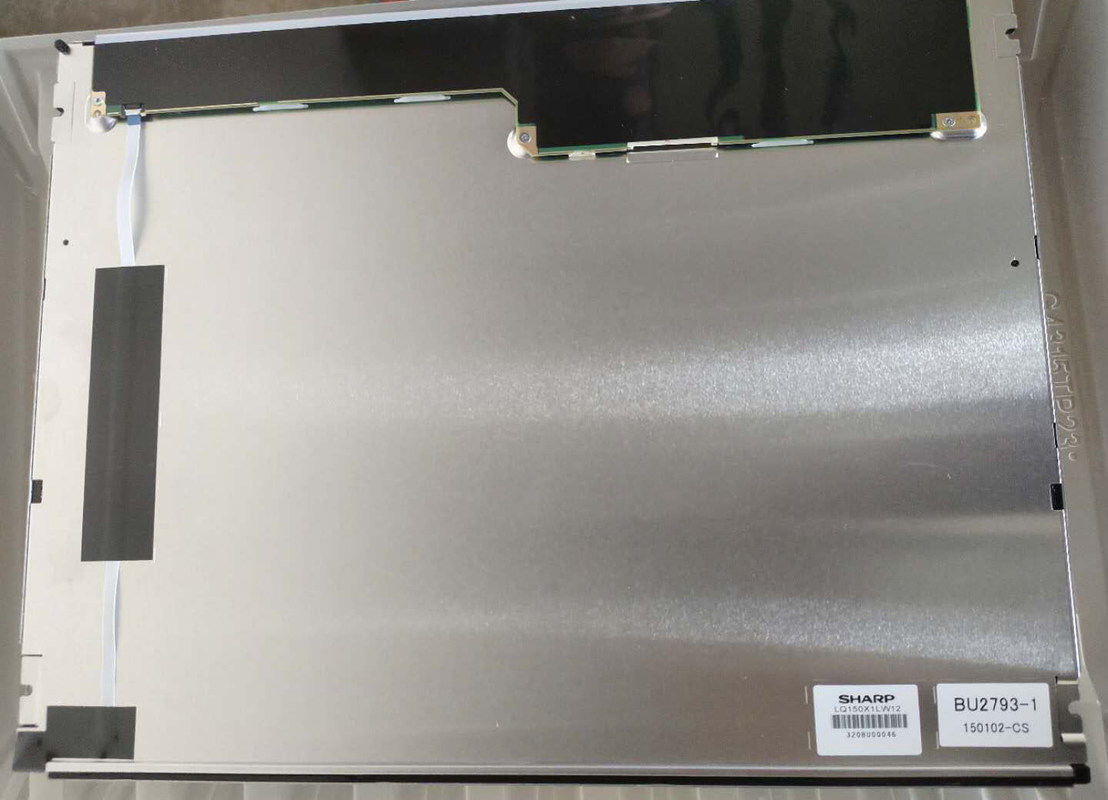

Product Details:
|
| Model: | LQ150X1LW12 | Diagonal Size: | 15" |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Pixel Format: | 1024(RGB)×768 |
| Viewing Angle: | 85/85/85/85 | Interface Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Light Source: | WLED , 70K Hours , With LED Driver | Environment: | Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -25 ~ 65 °C |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ150 Series LQ150X1LW12B LQ150X1LW12
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.2(H) × 231.1(V) |
| Outline Dim.(mm) | 331.6(H) × 254.7(V) | Depth(mm) | 6.0/9.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel | |||
| Other Spec : | Weight | 950g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ASV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.295; Y:0.325 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7588K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 91% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 360/800mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010G | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.75/1.2A (Typ./Max.) | ||
