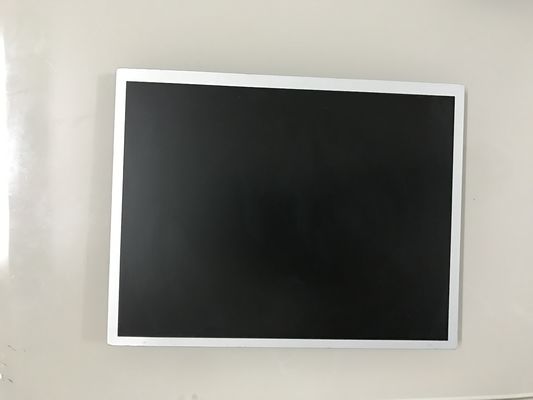

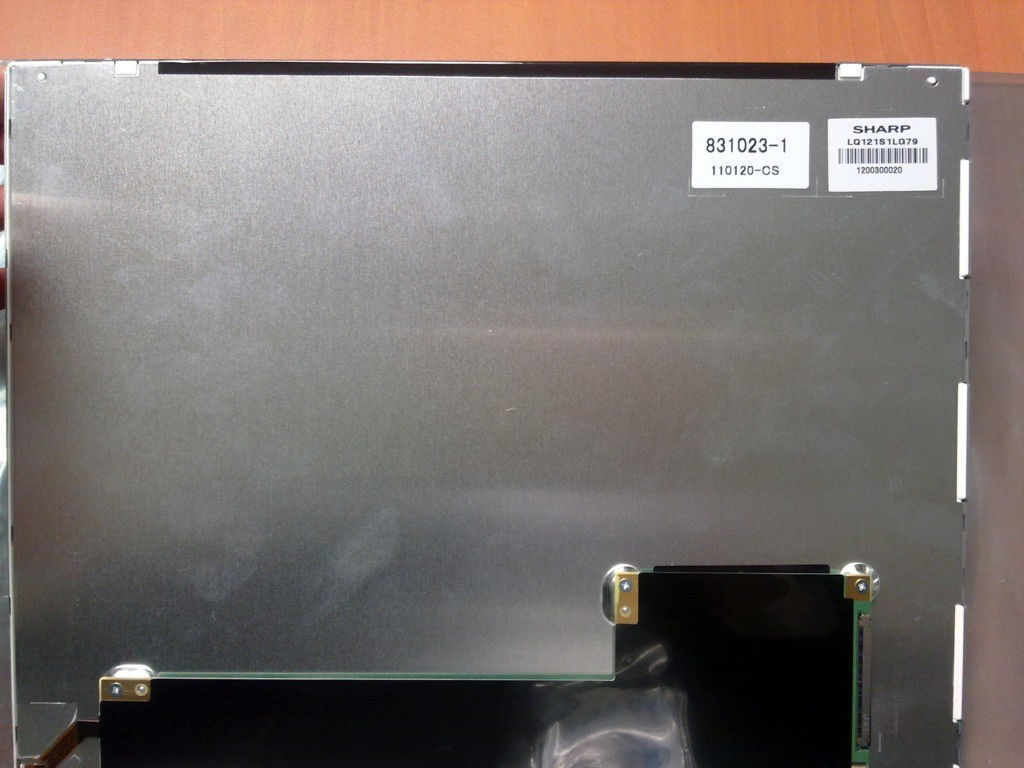

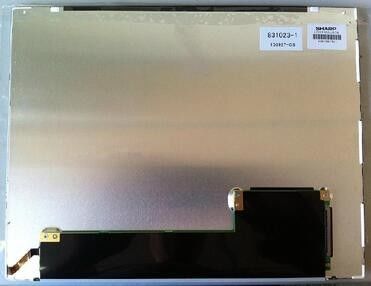

LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY

LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY
LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ121S1LG79
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 14.0 Kgs 504×426×326 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

LQ121S1LG79 Sharp 12.1" LCM 800×600RGB  330cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Model: LQ121S1LG79 Panel Size: 12.1"
Brightness330: 330cd/m² Resolution: 800(RGB)×600
Signal Interface: LVDS (1 Ch, 8-bit) , 30 Pins Connector Lamp Type: WLED , 50K Hours , With LED Driver
Environment: Operating Temp.: -10 ~ 75 °C ; Storage Temp.: -30 ~ 75 °C Pixel Format: RGB Vertical Stripe
High Light:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ121 Series LQ121S1LG84 LQ121S1LG81 LQ121S1LG79 LQ121S1LG75



Sharp LQ121S1LG79 Optical Details

Basic Detail :
Luminance
330 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.290; Wy:0.305
Support Color
16.2M (6-bit + FRC)
Color Temperature
8405K
White Variation
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
78%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
81% coverage
Rec.2020
58% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ121S1LG79 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1025×0.3075 mm
Pixel Pitch(W×H)
0.3075×0.3075 mm [82PPI]
Physical Size :
Active Viewing
246(W)×184.5(H) mm
Overall Dim.
265(W)×205(H) mm
Bezel Opening
249.6(W)×188.1(H) mm
Overall Depth
9.5±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M2) on up, down bezel
Other Detail :
Mass
550g (Max.)
Surface
Antiglare, Hard coating (3H)







Sharp LQ121S1LG79 Interface Detail

Signal Electrical :
Input Current
260/390mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-XPB30SRL-HF11
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-270A





Sharp LQ121S1LG79 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.8V
Input Current
350/500mA (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
