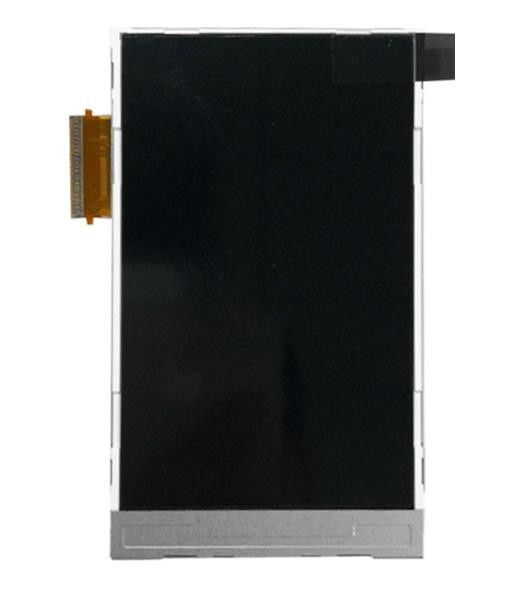

Product Details:
|
| Panel Model: | LS030T8LX01 | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Type: | CG-Silicon, LCM | Pixel Format: | RGB Vertical Stripe |
| Brightness: | 280 Cd/m² (Typ.) | Panel Size: | 3.0" |
| Lamp Type: | 6S1P WLED , Without Driver | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS030T8LX01 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Panel Size : | 3.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×854 [FWVGA] | RGB Vertical Stripe | 0.0765×0.0765 [332PPI] | 0.0255×0.0765 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 36.72(H) × 65.331(V) | - | 41.5(H) × 76.5(V) | 1.67 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 8.20g (Typ.) | - | Hard coating (3H) | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/3.0V (Typ.)(VDDIO/VDD) | 0.2/8.5mA (Typ.)(IDDIO/IDD) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | FPC | |||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 51 pins | 1 pcs | ||||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 280 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 40/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transflective | 550 : 1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6737K | 16.7M (8-bit) | X:0.310; Y:0.320 | |
| White Variation : | 1.25/1.54 (Typ./Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 0.9/1.5% (Min./Typ.) | |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S1P | - | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 35mA (Max.) | 130mW (Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 4 pins | 1 pcs | BLE-4PINS-AACC | |||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
