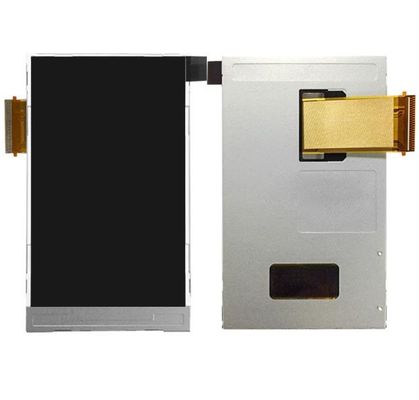

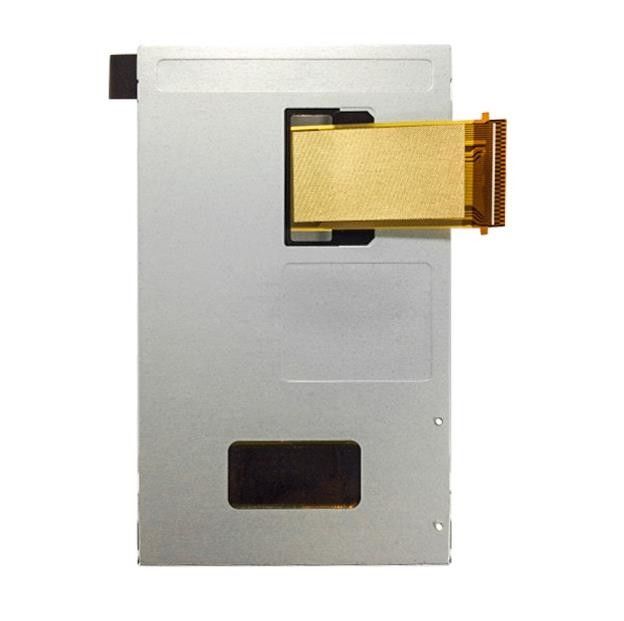

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LS030Y3DX01 |
|---|---|---|---|
| Luminance: | 500 Cd/m² (Typ.) | Screen Size: | 3.0 Inch |
| Backlight: | 1S6P WLED , No Driver | Pixel Number: | 480(RGB)×800 (WVGA) 313PPI |
| Max. Ratings: | Storage Temp.: -25 ~ 80 °C Operating Temp.: -20 ~ 70 °C | Signal Type: | Parallel RGB (1 Ch, 8-bit) + SPI , FPC 49 Pins |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Pixel Features : | Resolution | 480(RGB)×800, WVGA | Dot Pitch(mm) | 0.027×0.081 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.081×0.081 (H×V) [313PPI] | |
| Mechanical Size : | Active Area(mm) | 38.88(H) × 64.8(V) | Bezel Area(mm) | 40.8(H) × 66.0(V) |
| Outline Dim.(mm) | 45.6(H) × 76.4(V) | Depth(mm) | 2.0 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:5 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 13.3g | Treatment | - |
| Signal Electrical : | Voltage Supply | 2.8/2.8V (Typ.)(VDDIO/VCC) | Current Supply | 20.5/30.0 (Typ./Max.)(IDD+ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) + SPI | Signal Voltage | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 49 pins | 0.6 mm | ||||
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | ASV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 11/24 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 81% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Shape | Parallel | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1S6P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 3.1/3.4V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
