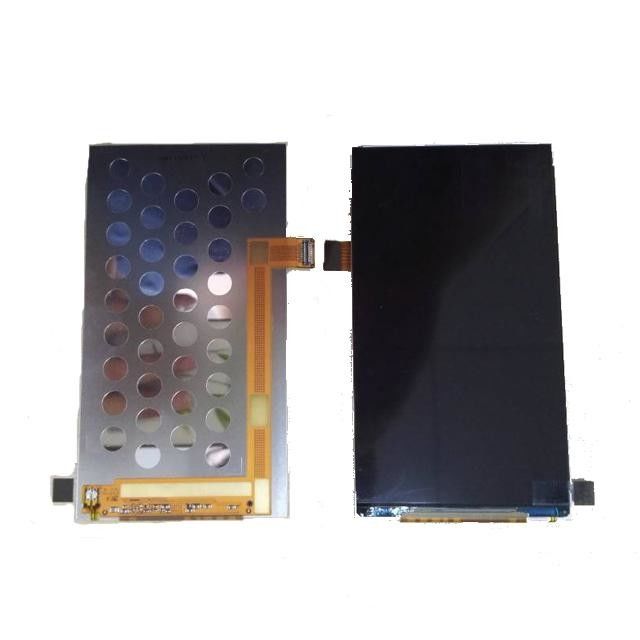

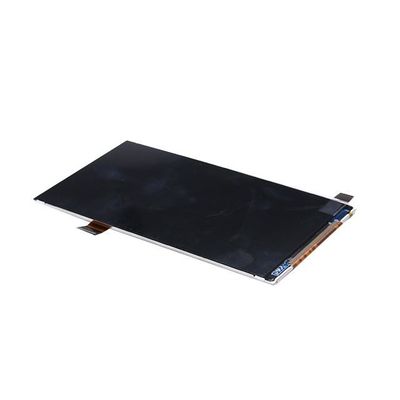

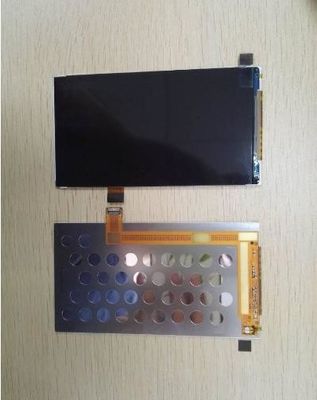

Product Details:
|
| Model Name: | LS048K3SX01 | Screen Size: | 4.8 Inch |
|---|---|---|---|
| Luminance: | 500cd/m² | Screen Type: | LCM , CG-Silicon |
| Pixel Number: | 720(RGB)×1280 (WXGA) 307PPI | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| Backlight: | WLED | Signal Type: | MIPI (4 Data Lanes) , 30 Pins Connector |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥5) | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 91% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Screen Size : | 4.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 720(RGB)×1280, WXGA | RGB Vertical Stripe | 0.0275×0.0825 mm | 0.0825×0.0825 mm [307PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 59.4×105.6 mm | 60.4×106.6 mm | 63.2×115.5 mm | 1.62 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 9:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 25.0g | - | Clear | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/2.85/5.6/-5.4V (Typ.)(VDDIO/VDD/VSP/VSN) | 13.7/2.4/13.2/12.5mA (Typ.)(IDDIO/IDD/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AXT630124 | 1 pcs | 30 pins | 0.4 mm | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 20mA (Typ.) | ||||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
