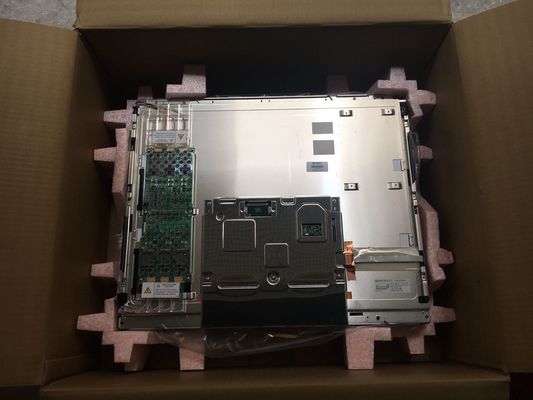

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LM100SS1T522 |
|---|---|---|---|
| Brightness: | 100 Cd/m² (Typ.) | Bezel Opening: | 207.0(W)×156.0(H) Mm |
| Panel Size: | 10.0INCH | Resolution: | 800(RGB)×600, SVGA, 99PPI |
| Lamp Type: | 1 Pcs CCFL , 25K Hours , Without Driver | Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Screen Size : | 10.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 203.98×152.98 mm | 207.0×156.0 mm | 236.8×172.5 mm | 6.5±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 340g | - | Antiglare, Hard coating (3H) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 25K(Typ.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 555V (Typ.) | 4.3/5.0mA (Typ./Max.) | 2.4W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 40/100KHz (Min./Max.) | 850/1050V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 100 cd/m² (Typ.) | STN, Normally Black, Transmissive | 50:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 30/30/15/25 (Typ.)(CR≥5) | 220/80 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7075K | Color | X:0.300; Y:0.340 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | 680/975mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-W31P-HF | 1 pcs | 31 pins | 1.25 mm | ||

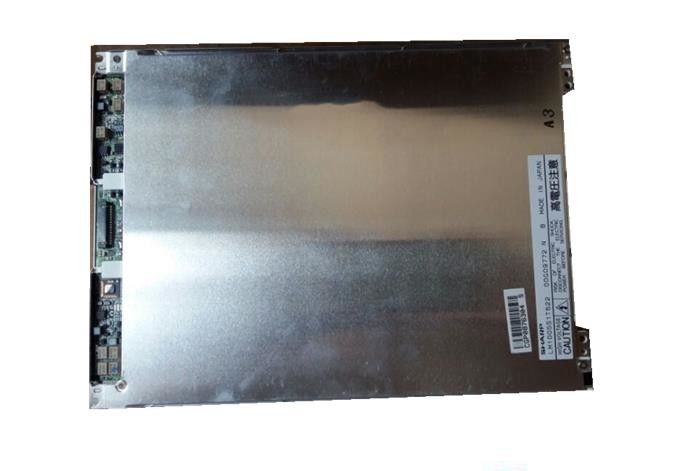

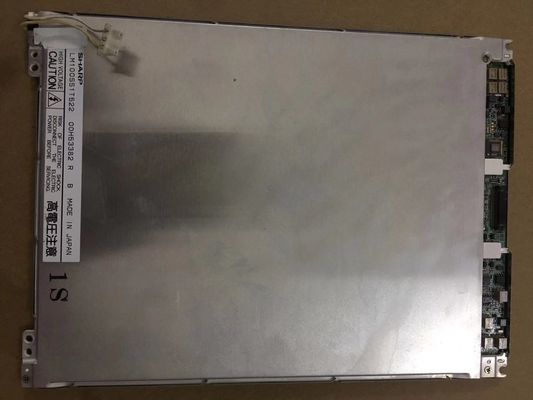

LM100SS1T522 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 203.98(W)×152.98(H) mm, outline size of 236.8(W)×172.5(H)×6.8(D) mm, viewing area size of 207.0(W)×156.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 340g. As a STN, Normally Black, Transmissive LCM product, LM100SS1T522 can provides 100 cd/m² display brightness 50:1 transimissive contrast ratio, 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
