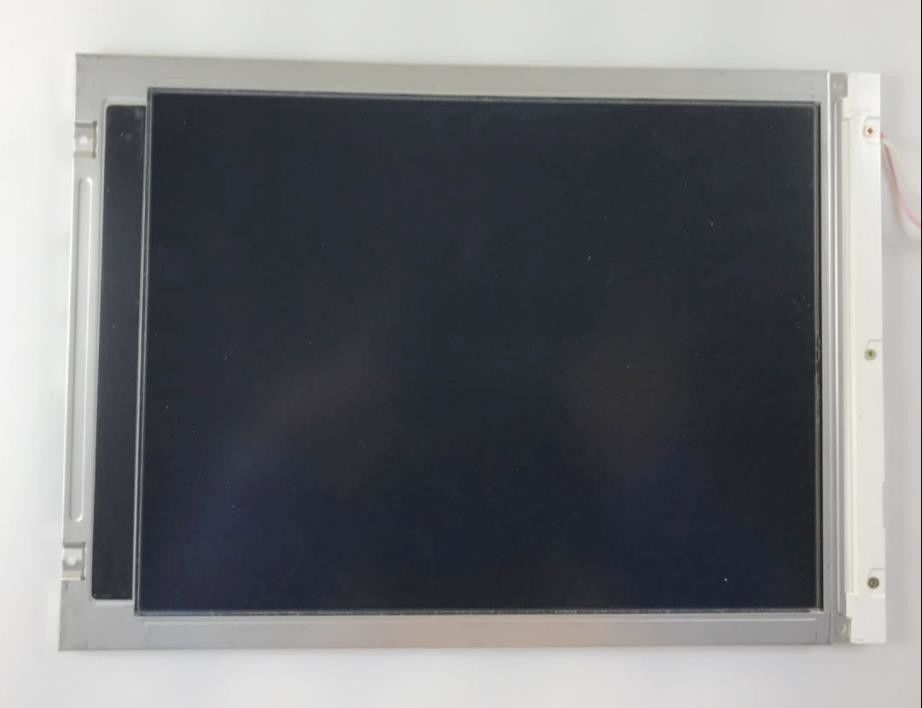

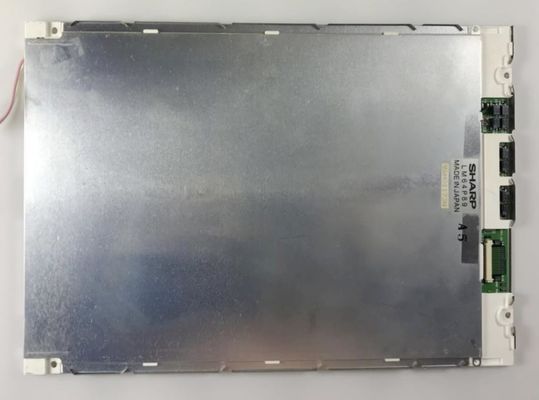

Product Details:
|
| Model: | LM64P89 | Diagonal Size: | 10.4 Inch |
|---|---|---|---|
| Luminance: | 75 Cd/m² (Typ.) | Brand: | Sharp |
| Light Source: | CCFL [1 Pcs] , 10K Hours , W/O Driver | Pixel Format: | 640×480 [VGA] 76PPI |
| Interface Type: | Parallel Data (4-bit) 15 Pins Connector | Environment: | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brand | SHARP | Model | LM64P89 |
|---|---|---|---|---|
| Type | LCM FSTN-LCD | Used For | ||
| Screen Size | 10.4" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 60 °C | Operating Temp. | 0 ~~ 45 °C |
| Basic Information : | Luminance(cd/m²) | 75 (Typ.) | Contrast Ratio | 18:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 25/25/20/10 (Typ.)(CR>4) | Display Mode | STN, Black/White (Negative), Transmissive | |
| Best View on | - | Response(ms) | 80/70 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 10K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 385V (Typ.) | Current Supply | 5.0/7.0mA (Typ./Max.) | ||
| Frequency | - | Startup Voltage | 1000V (Min.) | |||
| Consumption | 2.0W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| MITSUMI | M63M83-04 | 1 pcs | 4 pins | 2.5 mm | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
| Pixel Features : | Resolution | 640×480, VGA | Dot Pitch(mm) | 0.330×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.17(H) × 158.37(V) | Bezel Area(mm) | 223.0(H) × 169.0(V) |
| Outline Dim.(mm) | 268(H) × 190(V) | Depth(mm) | 7.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Spec : | Weight | 450g (Typ.) | Treatment | - |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 24/36mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 450/680mW (Typ./Max.) | |||||
| Signal Type : | Parallel Data (4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| molex | 53261-1510 | 1 pcs | 15 pins | 1.25 mm | ||
LM64P89 supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 211.17(W)×158.37(H) mm, outline size of 268(W)×190(H) mm, viewing area size of 223.0(W)×169.0(H) mm, net weight of 450g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM64P89 can provides 75 cd/m² display brightness 18:1 transimissive contrast ratio, 25/25/20/10 (Typ.)(CR>4) (L/R/U/D) viewing angle , and response time of 80/70 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 10K hours, external backlight driver is additionally needed.
