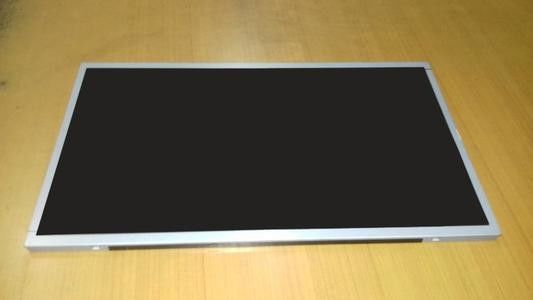

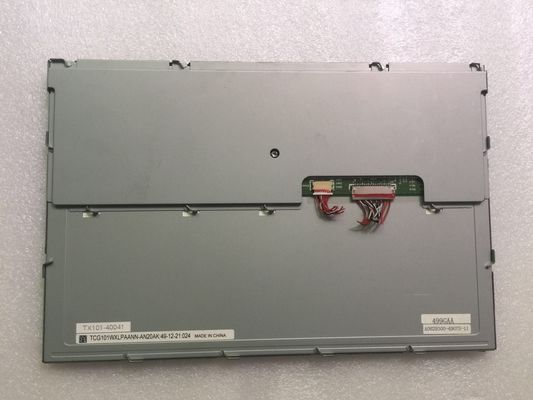

Product Details:
|
| MODEL NUMBER: | TCG101WXLPAANN-AN20-S | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1280×800RGB |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Lamp Type: | WLED , 50K Hours , With LED Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TCG101WXLPAANN-AN20-S | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Screen Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 216.96×135.6 mm | 219.96×138.6 mm | 236×156.8 mm | 6.7/9.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 500g (Typ.) | - | Antiglare | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/80/80 (Typ.)(CR≥10) | 8/22 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8665K | 16.2M (6-bit + FRC) | X:0.285; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM08B-SHLS-TF(LF)(SN) | 1 pcs | 8 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 275/360mA (Typ./Max.) | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 350/460mA (Typ.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF19L-20P-1H(54) | 1 pcs | 20 pins | 1.0 mm | ||
