T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY
T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

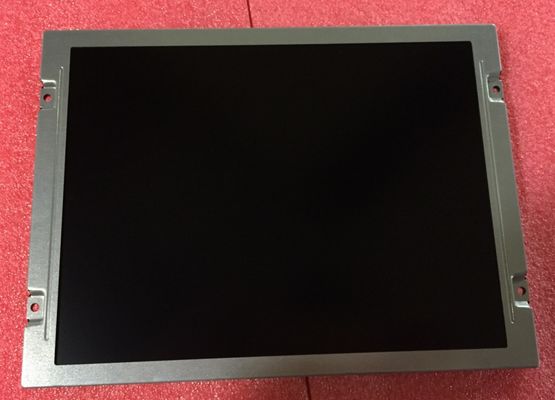

Large Image :  T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-55786GD084J-LW-AAN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

T-55786GD084J-LW-AAN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: T-55786GD084J-LW-AAN
SIZE: 8.4INCH RESOLUTION: 800×600RGB
BRIGHTNESS: 600 (Typ.)(cd/m²) Signal Type: LVDS (1 Ch, 8-bit) , 30 Pins Connector
Backlight: 4S4P WLED , 75K Hours , With LED Driver TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C
High Light:

WLED Industrial TFT Display

,

LCD Industrial TFT Display

OPTREX T-55786GD084J-LW-AAN Application Details

Basic Information :
Brand

T-55786GD084J-LW-AANModel
Type
a-Si TFT-LCD , LCM
Used For

8.4 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-30 ~ 80 °C
RoHS

-Vibration



OPTREX T-55786GD084J-LW-AAN Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.071×0.213 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.213×0.213 (H×V) [119PPI]
Mechanical Size :
Active Area(mm)
170.4(H) × 127.8(V)
Bezel Area(mm)
-
Outline Dim.(mm)
199.5(H) × 149(V)
Depth(mm)
11.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Other Spec :
Weight
390g (Max.)
Treatment
Antiglare



OPTREX T-55786GD084J-LW-AAN Optical Details

Basic Information :
Luminance(cd/m²)
600 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
AWV, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
18/12 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.318; Wy:0.338
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6171K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



OPTREX T-55786GD084J-LW-AAN Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No



OPTREX T-55786GD084J-LW-AAN Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
270/330mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-X30SSLA-HF
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-272A



OPTREX T-55786GD084J-LW-AAN Backlight Details

Backlight Features :
Type
WLED
Quantity
4S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
75K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
400mA (Typ.)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
