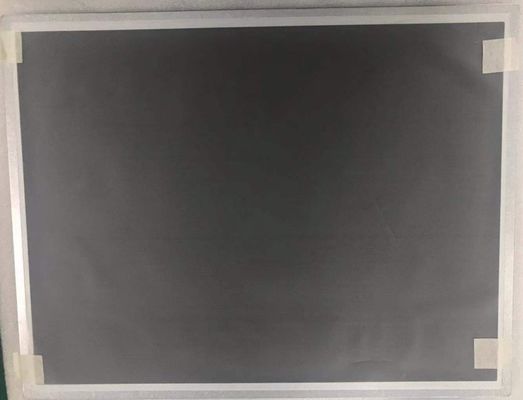

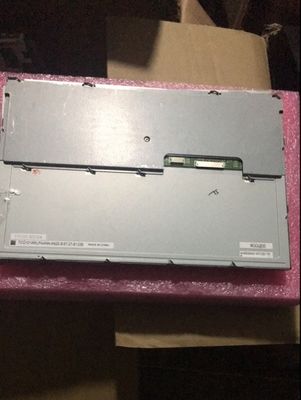

Product Details:
|
| MODEL NUMBER: | TCG101WXLPAAFA-AA20 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1280×800RGB |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Lamp Type: | WLED , 50K Hours , With LED Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TCG101WXLPAAFA-AA20 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 8/22 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8665K | 16.7M (8-bit) | X:0.285; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×800 [WXGA] | RGB Vertical Stripe | 0.1695×0.1695 [149PPI] | 0.0565×0.1695 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 216.96(H) × 135.6(V) | 219.96(H) × 138.6(V) | 236(H) × 156.8(V) | 11.2±0.8 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| Without touch controller | - | - | 4-wire Resistive Touch | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 605g (Typ.) | - | Glare (Haze 0%), Hard coating (2H) | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM08B-SHLS-TF(LF)(SN) | 1.0 mm | 8 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 275/360mA (Typ./Max.) | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 350/460mA (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19L-20P-1H(54) | 1.0 mm | 20 pins | 1 pcs | ||
