Product Details:
|

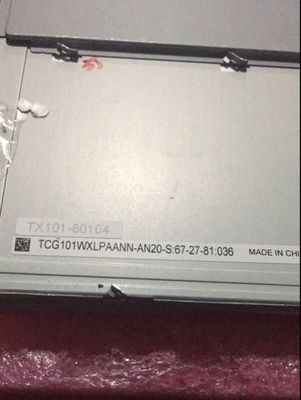

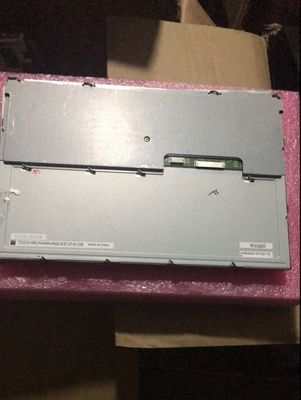

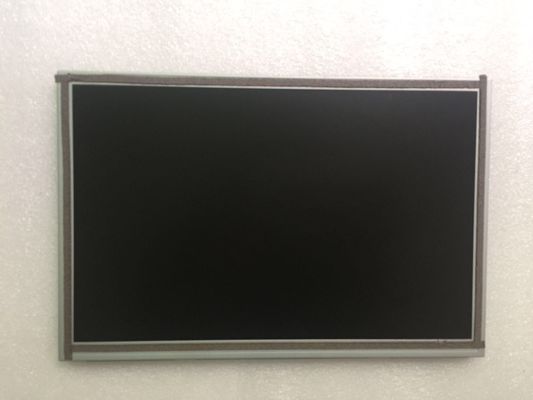

| MODEL NUMBER: | TCG101WXLPAANN-AN20 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1280×800RGB |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Lamp Type: | WLED , 50K Hours , With LED Driver | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Info : | Panel Brand | Panel Model | TCG101WXLPAANN-AN20 | |
|---|---|---|---|---|
| Diagonal Size | 10.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.0565×0.1695 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1695×0.1695 mm (H×V) [149PPI] | |
| Mechanical Size : | Display Area | 216.96×135.6 mm (H×V) | Bezel Area | 219.96×138.6 mm (H×V) |
| Outline Dim. | 236×156.8 mm (H×V) | Outline Depth | 6.7/9.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 500g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 8/22 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.285; Wy:0.310 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 8665K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM08B-SHLS-TF(LF)(SN) | 1.0 mm | 8 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 275/360mA (Typ./Max.) | ||
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 350/460mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF19L-20P-1H(54) | 1.0 mm | 20 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
