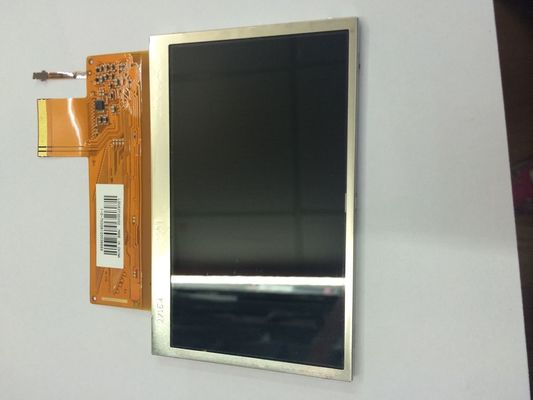

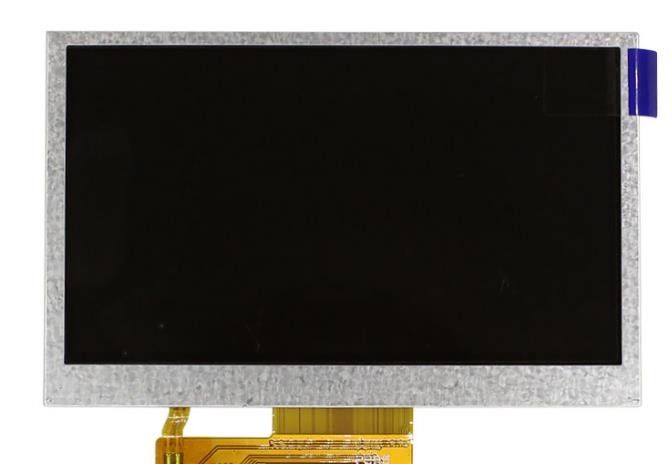

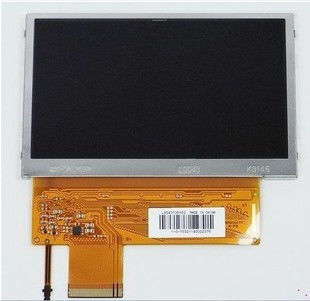

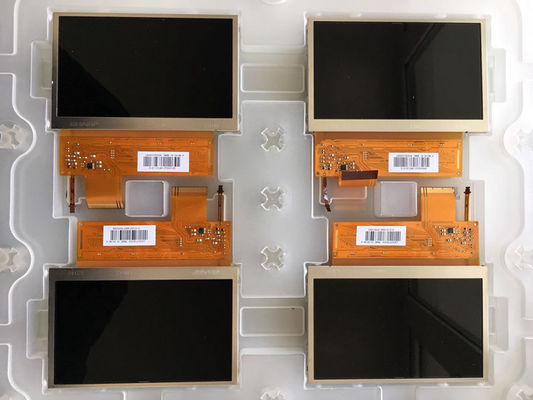

Product Details:
|
| Panel Model: | LQ043T3DX0A | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Size: | 4.3INCH | Brightness: | 250 Cd/m² (Typ.) |
| Resolution: | 480(RGB)×272, WQVGA, 128PPI | Lamp Type: | 7S1P WLED , Without Driver |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -25 ~ 70 °C |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T3DX0C LQ043T3DX0A LQ043T3DX04 LQ043T3DX03 LQ043T3DX02
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ043T3DX0A |
|---|---|---|---|---|
| Diagonal Size | 4.3" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -25 ~ 70 °C |
| RoHS State | Vibration Rating | - |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | ASV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.066×0.198 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.198×0.198 mm (H×V) [128PPI] | |
| Mechanical Size : | Display Area | 95.04×53.856 mm (H×V) | Bezel Area | - |
| Outline Dim. | 105.5×67.2 mm (H×V) | Outline Depth | 5.2 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | 1 point | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 65.0g (Typ.) | Surface | Hard coating (3H) |
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | VIL≤0.2VCC; VIH≥0.8VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 2.5/5.0V (Typ.)(VCC/AVDD) | Current Input | 1.2/10mA (Typ.)(ICC/AIDD) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-060B | |||
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 22.8/25V (Typ./Max.) | Current Input | 23mA (Typ.) | ||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 4 pins | 1 pcs | BLE-4PINS-CNNA | |||
LQ043T3DX0A supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Hard coating (3H), net weight of 65.0g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ043T3DX0A can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
