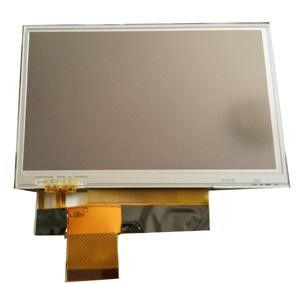

Product Details:
|
| Panel Size: | 4.8INCH | Panel Model: | LQ048Y3DH01 |
|---|---|---|---|
| Panel Brand: | Sharp | Resolution: | 800×480(RGB), WVGA, 194PPI |
| Lamp Type: | 7S2P WLED , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 67 Pins FPC |
| Brightness: | 400 Cd/m² (Typ.) | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ048 Series LQ048Y3DH01 LQ048Y3DG02 LQ048Y3DG01
| Pixel Features : | Pixel Format | 800×480(RGB) [WVGA] | Dot Pitch | 0.1305×0.0435 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.1305×0.1305 mm (H×V) [194PPI] | |
| Mechanical Size : | Display Area | 104.4×62.64 mm (H×V) | Bezel Area | 108.68×66.46 mm (H×V) |
| Outline Dim. | 116.5×77.9 mm (H×V) | Outline Depth | 4.35±0.25 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 65.0g | Surface | Antiglare, Hard coating (2H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 30/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6551K | White Uniformity | 1.43/1.67 (Typ./Max.)(9 points) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S2P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 22.4/24.5 (Typ./Max.) | Current Input | 20mA (Typ.) | ||
| Consumption | 896mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) + SPI | Logic Voltage | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/2.85V (Typ.)(VDDIO/VCI) | Current Input | 0.1/25mA (Typ.)(IDDIO/ICI) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 67 pins | 1 pcs | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
