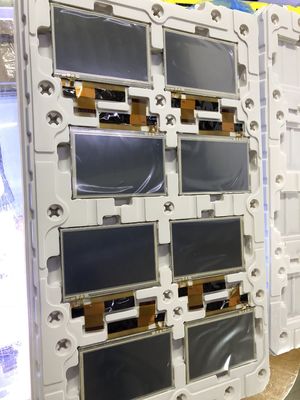

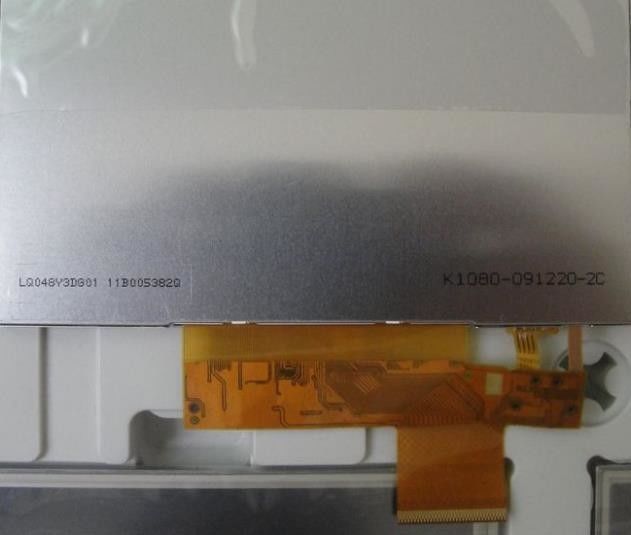

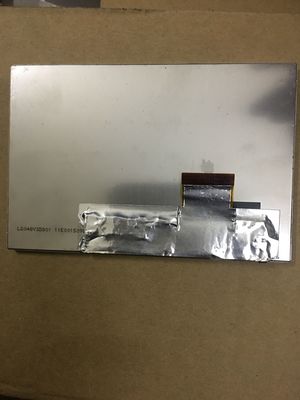

Product Details:
|
Panel Brand: | Sharp | Panel Model: | LQ048Y3DG02 |
---|---|---|---|
Brightness: | 500cd/m² | Panel Size: | 4.8" |
Lamp Type: | 9S2P WLED , Without Driver | Resolution: | 800×480(RGB), WVGA, 194PPI |
Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 67 Pins FPC | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
LQ048 Series LQ048Y3DH01 LQ048Y3DG02 LQ048Y3DG01
Basic Information : | Brand | Model | Type | Model Alias |
---|---|---|---|---|
SHARP | LQ048Y3DG02 | a-Si TFT-LCD , LCM | - | |
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
-10 ~ 60 °C | -20 ~ 70 °C | - |
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
---|---|---|---|
500 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
80/80/55/80 (Typ.)(CR≥10) | 6 o'clock | 30/30 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
6551K | 16.2M (6-bit + FRC) | X:0.310; Y:0.340 | |
Luminance Variation : | TBD |
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | 2 strings | 9S2P | - | - | |
WLED Electrical : | Current Input | Voltage Input | Consumption | |||
20mA (Typ.) | 28.8/31.5V (Typ./Max.) | 1.15mW | ||||
Interface Features : | Position | Type | WLED Driver | |||
- | Included in panel signal interface | No |
Panel Size : | 4.8 inch | |||
---|---|---|---|---|
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
800×480(RGB), WVGA | RGB Horizontal Stripe | 0.1305×0.0435 mm | 0.1305×0.1305 mm [194PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
104.4×62.64 mm | 108.68×66.48 mm | 116.5×77.9 mm | 3.25 mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 15:9 (W : H) | Landscape type | ||
Other Features : | Panel Cover | Weight | Surface | |
- | 47.0g | Antiglare, Hard coating (2H) |
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
---|---|---|---|---|---|---|
0.02/20mA (Typ.)(IDDIO/ICI) | 1.8/2.85V (Typ.)(VDDIO/VCI) | - | ||||
Voltage for Display Signals : | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||||
Interface Features : | Position | Type | Interface | |||
- | FPC | Parallel RGB (1 ch, 8-bit) + SPI | ||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
1 pcs | 0.3 mm | 67 pins |
LQ048Y3DG02 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 104.4(W)×62.64(H) mm, outline size of 116.5(W)×77.9(H) mm, viewing area size of 108.68(W)×66.48(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 47.0g. As a TN, Normally White, Transmissive LCM product, LQ048Y3DG02 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/55/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
