Product Details:
|

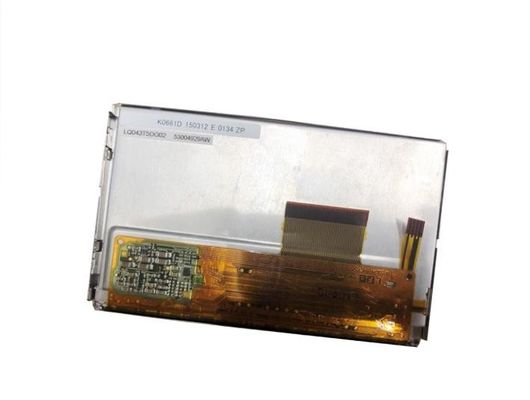

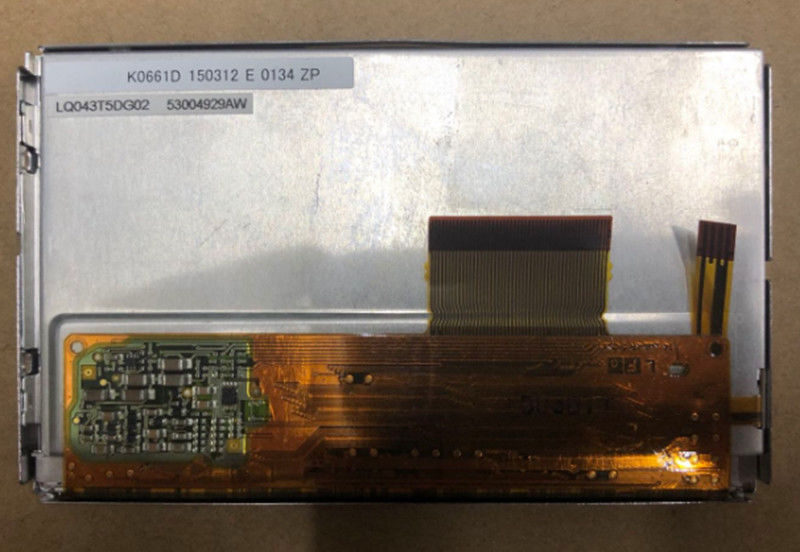

| Model Name: | LQ043T5DG02 | Manufacturer: | Sharp |
|---|---|---|---|
| Screen Type: | LCM , A-Si TFT-LCD | Arrangement: | RGB Vertical Stripe |
| Luminance: | 500 (Typ.)(cd/m²) | Screen Size: | 4.3 Inch |
| Pixel Number: | 480(RGB)×234 124PPI | Max. Ratings: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
| Basic Information : | Brand | SHARP | Model | LQ043T5DG02 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 4.3" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| Pixel Features : | Resolution | 480(RGB)×234 | Dot Pitch(mm) | - |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2385×0.2275 (H×V) [124PPI] | |
| Mechanical Size : | Active Area(mm) | 95.4(H) × 53.24(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 107.7(H) × 65.5(V) | Depth(mm) | 8.15 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 65.0g (Max.) | Treatment | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
