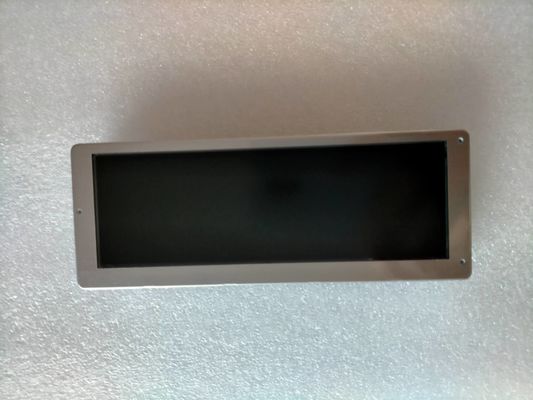

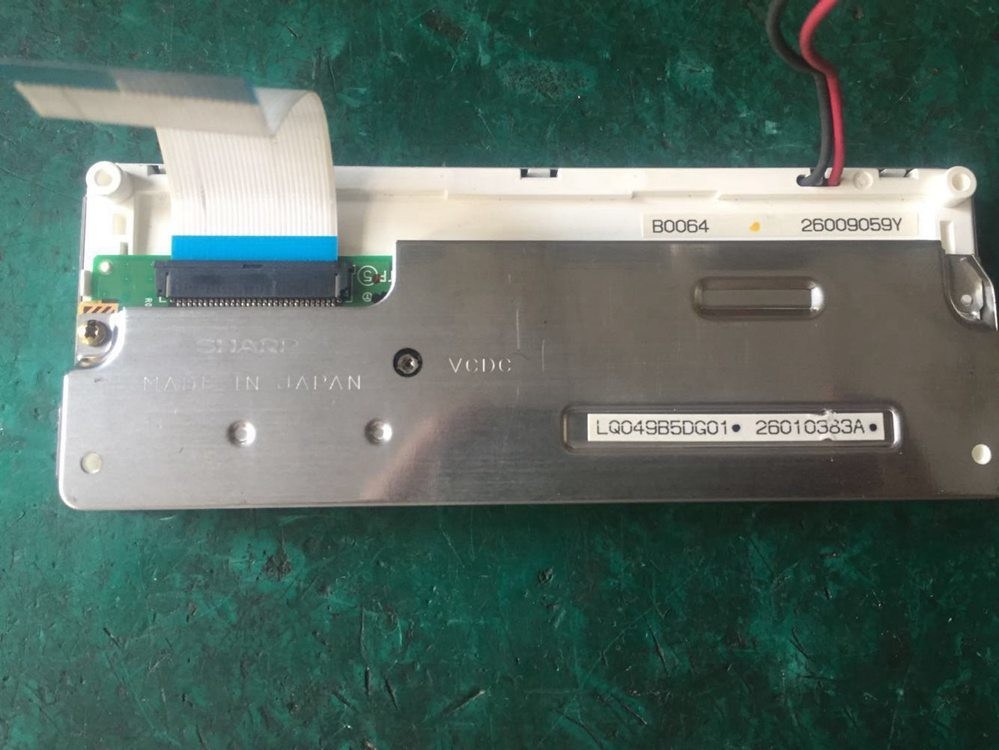

Product Details:
|
| Model Name: | LQ049B5DG01 | Manufacturer: | Sharp |
|---|---|---|---|
| Pixel Number: | 320(RGB)×96 67PPI | Screen Size: | 4.9 Inch |
| Luminance: | 350 Cd/m² (Typ.) | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 30 Pins Connector |
| Backlight: | 1 Pcs CCFL , 10K Hours , No Driver | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ049 Series LQ049B5DG04 LQ049B5DG01
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 60 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30/50 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.345; Wy:0.355 | Support Color | 262K (6-bit) |
| Color Temperature | 5020K | White Uniformity | - |
| Signal Electrical : | Input Current | 22/20/-16mA (Typ.)(ISH/IGH/IGL) | Input Voltage | 5.0/10.0/-10.0V (Typ.)(VSH/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VIL≤0.3VSH; 0.7VSH≤VIH | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCI | SFR30R-1STE1 | 1 pcs | 0.8 mm | 30 pins | DRGB-30P1C6B-160A | |
| Pixel Features : | Number of Pixel | 320(RGB)×96 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.125×0.375 mm | Pixel Pitch(W×H) | 0.375×0.375 mm [67PPI] | |
| Physical Size : | Active Viewing | 120(W)×36(H) mm | Overall Dim. | 142(W)×54(H) mm |
| Bezel Opening | 125.6(W)×41.6(H) mm | Overall Depth | 13.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | ||
| Fixation : | Rear mounting holes (4-Ф2.2) | |||
| Other Detail : | Mass | 110±20g | Surface | Antiglare |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 6.5/7.0mA (Max.) | Input Voltage | 350±40V | ||
| Frequency | 30/60KHz (Min./Max.) | Turn-on Voltage | 1150/1200V (Typ.)(Ta=+25/-30℃) | |||
| Consumption | 2.3W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
