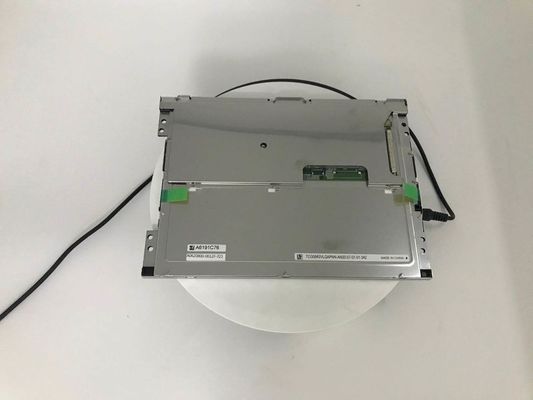

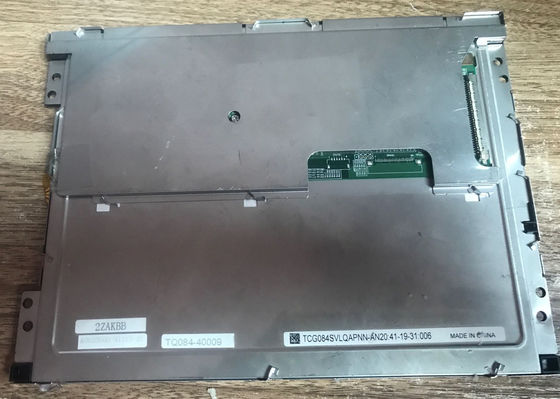

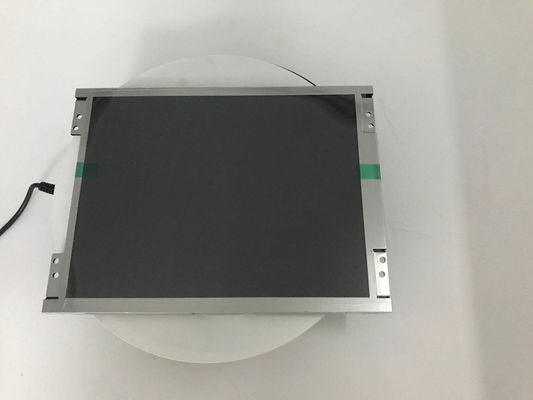

TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY
TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Large Image :  TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG084SVLQAPNN-AN20-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 300PCS
Contact Now

TCG084SVLQAPNN-AN20-SA Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TCG084SVLQAPNN-AN20-SA BRAND: Kyocera
SIZE: 8.4INCH RESOLUTION: 800×600RGB
BRIGHTNESS: 400 Cd/m² (Typ.) Interface Type: LVDS (1 Ch, 8-bit) , 30 Pins Connector
Light Source: WLED , 50K Hours TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG084SVLQAPNN-AN20-SA Application Details

Basic Detail :
Manufacturer

TCG084SVLQAPNN-AN20-SAModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.4 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG084SVLQAPNN-AN20-SA Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
18/12 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AWV, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.325
Support Color
16.2M (6-bit + FRC)
Color Temperature
6685K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
52% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG084SVLQAPNN-AN20-SA Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.071×0.213 mm
Pixel Pitch(W×H)
0.213×0.213 mm [119PPI]
Physical Size :
Active Viewing
170.4(W)×127.8(H) mm
Overall Dim.
199.5(W)×147.4(H) mm
Bezel Opening
174.4(W)×131.8(H) mm
Overall Depth
9.0 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes
Other Detail :
Mass
315g
Surface
Antiglare



Kyocera TCG084SVLQAPNN-AN20-SA Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No



Kyocera TCG084SVLQAPNN-AN20-SA Interface Detail

Signal Electrical :
Input Current
270/330mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-X30SSLA-HF
1.0 mm
30 pins
1 pcs



Kyocera TCG084SVLQAPNN-AN20-SA Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Driver Electrical :
Input Voltage
12.0±1.2V
Input Current
330/500mA (Typ./Max.)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
