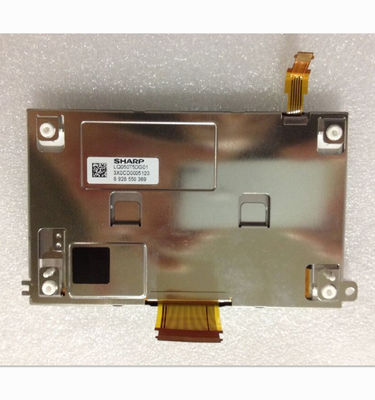

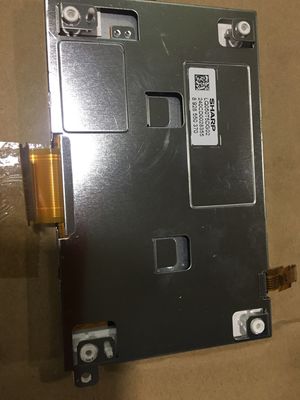

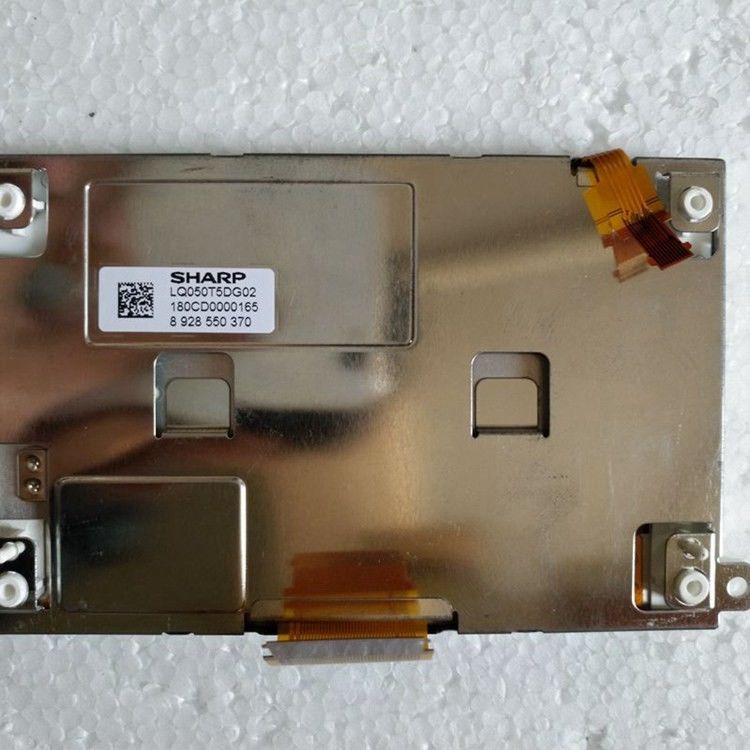

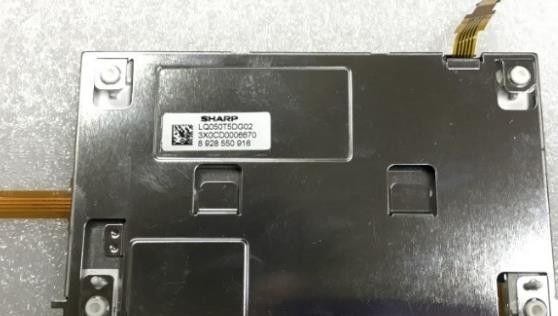

Product Details:
|
Manufacturer: | Sharp | Model Name: | LQ050T5DG02 |
---|---|---|---|
Luminance: | 600 Cd/m² (Typ.) | Screen Size: | 5.0 Inch |
Pixel Number: | 400(RGB)×240 (WQVGA) 94PPI | Backlight: | WLED |
Signal Type: | CMOS (1 Ch, 6-bit) | Max. Ratings: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
LQ050 Series LQ050T5DG02 LQ050T5DG01
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
SHARP | LQ050T5DG02 | a-Si TFT-LCD , LCM | - | |
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
- | -30 ~ 85 °C | -40 ~ 85 °C | - |
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
600 (Typ.) | - | - | |
Best View on | Display Mode | Contrast Ratio | |
- | TN, Normally White, Transmissive | - | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
- | 262K (6-bit) | - |
Panel Size : | 5.0" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
400(RGB)×240 [WQVGA] | RGB Vertical Stripe | 0.270×0.270 [94PPI] | 0.090×0.270 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
108(H) × 64.8(V) | - | 120.6(H) × 75.2(V) | 9.0 (Typ.) mm | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 15:9 (H:V) | ||
Other Detail : | Weight | Panel Cover | Treatment | |
110g (Typ.) | - | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
