TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

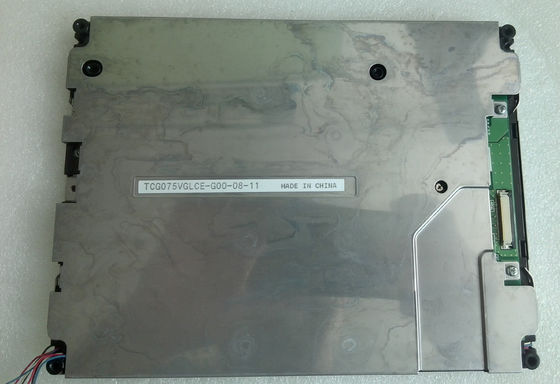

Large Image :  TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG075VGLCE-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

TCG075VGLCE-G00 Kyocera 7.5INCH LCM 640×480RGB 280NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG075VGLCE-G00
SIZE: 7.5INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 280 Cd/m² (Typ.) Interface Type: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector
Light Source: WLED [4 Strings] , 50K Hours , W/O Driver TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
High Light:

WLED Industrial TFT Display

,

WVGA Industrial Lcd Panel

Kyocera TCG075VGLCE-G00 Application Details

Basic Detail :
Manufacturer

TCG075VGLCE-G00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.5 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG075VGLCE-G00 Optical Details

Basic Detail :
Luminance
280 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
15/20 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.330; Wy:0.350
Support Color
262K (6-bit)
Color Temperature
5598K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
65% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VGLCE-G00 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.079×0.237 mm
Pixel Pitch(W×H)
0.237×0.237 mm [107PPI]
Physical Size :
Active Viewing
151.68(W)×113.76(H) mm
Overall Dim.
184(W)×139.8(H) mm
Bezel Opening
156.3(W)×118.4(H) mm
Overall Depth
12.7±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Rear mounting holes
Other Detail :
Mass
355g (Typ.)
Surface
Glare (Haze 0%)



Kyocera TCG075VGLCE-G00 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG075VGLCE-G00 Interface Detail

Signal Electrical :
Input Current
160/210mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9632S-33Z02-GF1
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



Kyocera TCG075VGLCE-G00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
50K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
23.1/25.9V (Typ./Max.)
Input Current
25mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SHLP-08V-S-B
1.0 mm
8 pins
1 pcs
BLE-8PINS-AAAACCCC
Backlight Driver :
No
