Product Details:
|

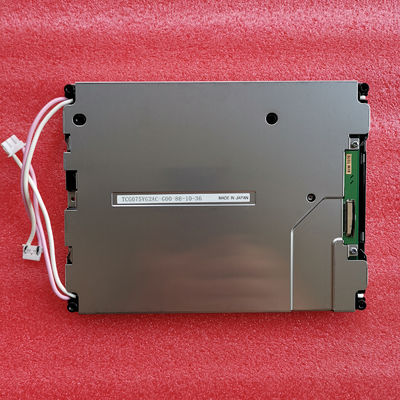

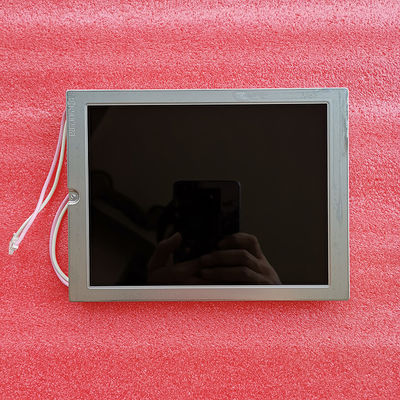

| MODEL NUMBER: | TCG075VG2AC-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 7.5INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 370 Cd/m² (Typ.) | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Light Source: | CCFL [2 Pcs] , 58K Hours , W/O Driver | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 70 °C |
| High Light: | WLED Industrial TFT Display,WVGA Industrial Lcd Panel |
||
| Basic Info : | Panel Brand | Panel Model | TCG075VG2AC-G00 | |
|---|---|---|---|---|
| Diagonal Size | 7.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.079×0.237 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.237×0.237 mm (H×V) [107PPI] | |
| Mechanical Size : | Display Area | 151.68×113.76 mm (H×V) | Bezel Area | 156.3×118.4 mm (H×V) |
| Outline Dim. | 184×139.8 mm (H×V) | Outline Depth | 12.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.5) | |||
| Other Features : | Weight | 370g (Typ.) | Surface | - |
| Basic Information : | Brightness | 370 cd/m² (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 5/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 5.06W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 58K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 440V (Typ.) | Current Input | 2.0/6.0mA (Min./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Kick-off Voltage | - | |||
| Consumption | 4.1W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 290/435mA (Typ./Max.) | ||
| Consumption | 957mW | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Kyocera Elco | 08-6210-033-340-800+ | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020A | |
