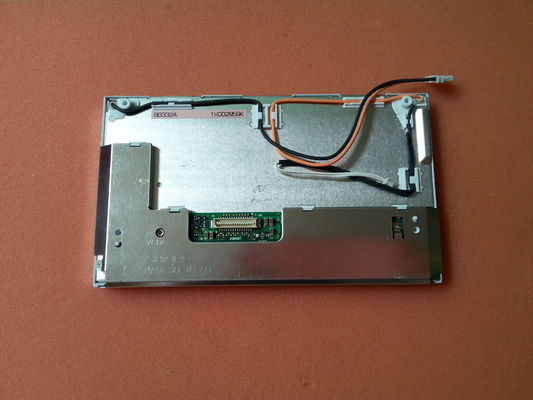

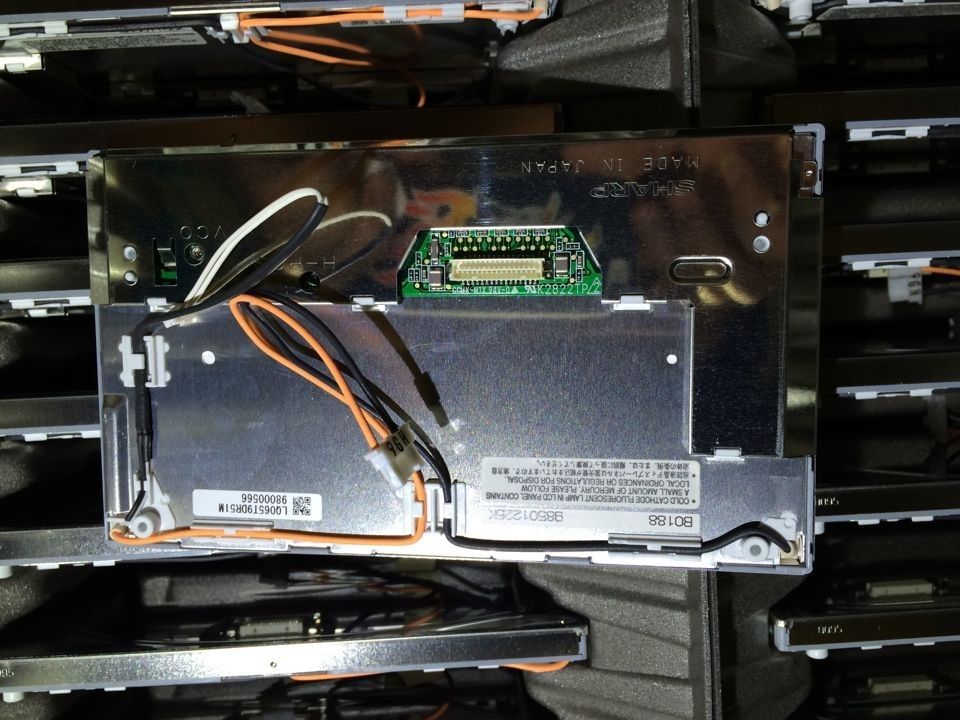

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ065T9DR51U |
|---|---|---|---|
| Screen Size: | 6.5 Inch | Luminance: | 220 Cd/m² (Typ.) |
| Backlight: | 1 Pcs CCFL , 10K Hours , No Driver | Pixel Number: | 400(RGB)×240 (WQVGA) 72PPI |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , Connector 31 Pins | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ065 Series LQ065T9DZ03 LQ065T9DZ01 LQ065T9DR53U LQ065T9DR51U LQ065T9DR51M LQ065T9DR51
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 400(RGB)×240, WQVGA | RGB Vertical Stripe | 0.1195×0.3305 mm | 0.3585×0.3305 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 143.4×79.326 mm | - | 155×89.2 mm | 12.5 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 205g (Max.) | - | Antiglare, Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transflective | 60:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 50/50/40/45 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 2.5/3.8% (Min./Typ.) |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transflective | 60:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 50/50/40/45 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 2.5/3.8% (Min./Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 10K(Min.) | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 700±70V | 6.5±0.5mA | |||||
| Operating Frequency | Startup Voltage | |||||
| 35/100KHz (Min./Max.) | 3000V (Max.)(Ta=-30℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0/10.0/-10.0V (Typ.)(VSH/VGH/VGL) | 28/25/-22mA (Typ.)(ISH/IGH/IGL) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9MA-31P-1V | 1 pcs | 31 pins | 1.0 mm | ||
LQ065T9DR51U supports display 400(RGB)×240 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 155(W)×89.2(H) mm, with surface treament of Antiglare, Antireflection, net weight of 205g (Max.). As a TN, Normally White, Transflective LCM product, LQ065T9DR51U can provides 220 cd/m² display brightness 60:1 transimissive contrast ratio, 50/50/40/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
