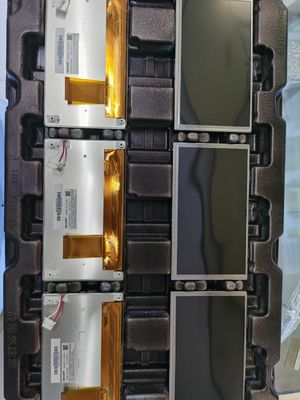

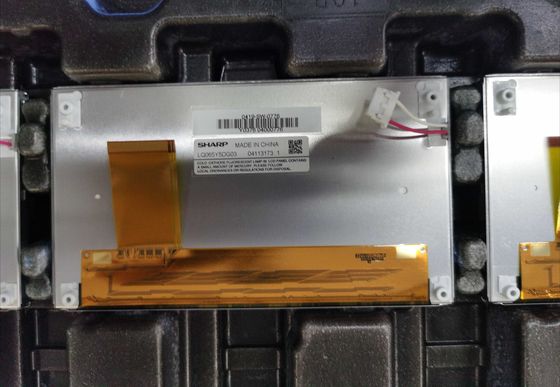

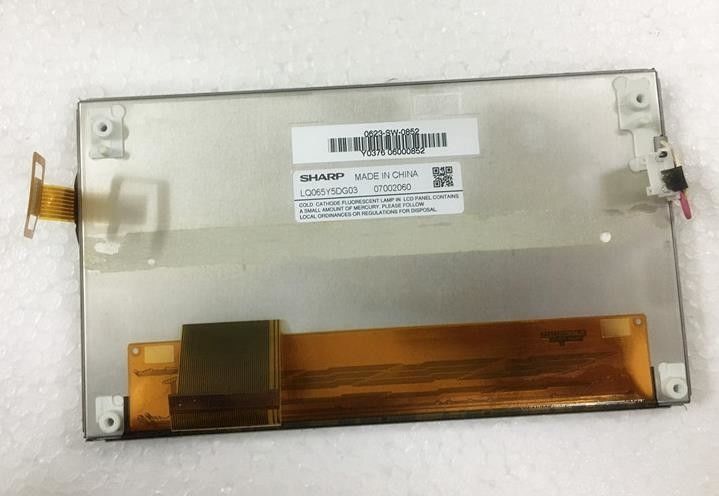

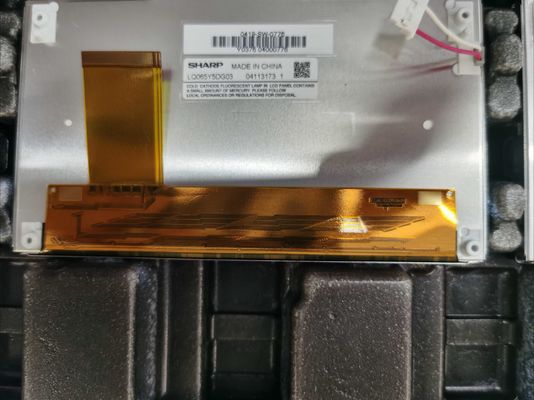

Product Details:
|
| Brand: | Sharp | Model: | LQ065Y5DG03 |
|---|---|---|---|
| Luminance: | 500 Cd/m² (Typ.) | Diagonal Size: | 6.5 Inch |
| Pixel Format: | 800(RGB)×480 [WVGA] 144PPI | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC |
| Light Source: | CCFL [1 Pcs] , 10K Hours , W/O Driver | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ065 Series LQ065Y5DG03 LQ065Y5DG01
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/16 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060×0.165 mm | Pixel Pitch(W×H) | 0.180×0.165 mm [144PPI] | |
| Physical Size : | Active Viewing | 144(W)×79.24(H) mm | Overall Dim. | 157.4(W)×89.7(H) mm |
| Bezel Opening | - | Overall Depth | 8.1/12.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Rear mounting Pole (4-Φ2.1) | |||
| Other Detail : | Mass | 180g (Max.) | Surface | Antiglare, Antireflection |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.6W (Typ.) |
| Signal Electrical : | Input Current | 26/15/0.20/0.20mA (Typ.)(ISHA/ISHD/IDD/IEE) | Input Voltage | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEEDC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 6.0±0.5mA | Input Voltage | 477/530/583V (Min./Typ./Max.) | ||
| Frequency | 30/70KHz (Min./Max.) | Turn-on Voltage | 890/960V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 3.45W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
LQ065Y5DG03 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 144(W)×79.24(H) mm, outline size of 157.4(W)×89.7(H)×12.6(D) mm, with surface treament of Antiglare, Antireflection, net weight of 180g (Max.). As a TN, Normally White, Transmissive LCM product, LQ065Y5DG03 can provides 500 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/16 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
