Product Details:
|

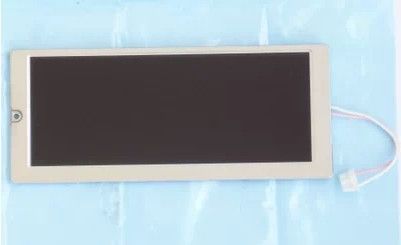

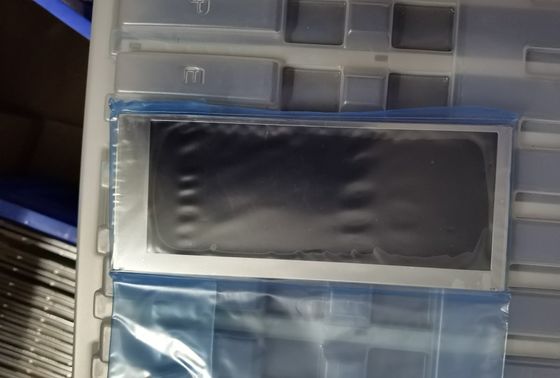

| MODEL NUMBER: | TCG062HVLBA-G20 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 6.2INCH | RESOLUTION: | 640×240RGB |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Backlight: | WLED , 40K Hours , With LED Driver |
| Signal Type: | TTL , 40 Pins | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C |
| High Light: | WLED Industrial TFT Display,LCD Industrial TFT Display |
||
| Basic Information : | Brand | Model | TCG062HVLBA-G20 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 6.2" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×240, HVGA | Dot Pitch(mm) | 0.077×0.231 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.231×0.231 (H×V) [109PPI] | |
| Mechanical Size : | Active Area(mm) | 147.84(H) × 55.44(V) | Bezel Area(mm) | 150.8(H) × 58.5(V) |
| Outline Dim.(mm) | 173(H) × 70(V) | Depth(mm) | 6.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 115g (Typ.) | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/65/80 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.330; Y:0.350 | Display Colors | 262K (6-bit) |
| Color Temperature | 5598K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 64% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 250/330mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | TTL | Signal Voltage | - | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| IRISO | 1 pcs | 40 pins | 0.5 mm | |||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 3.0/5.5V (Min./Max.) | Current Supply | - | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
