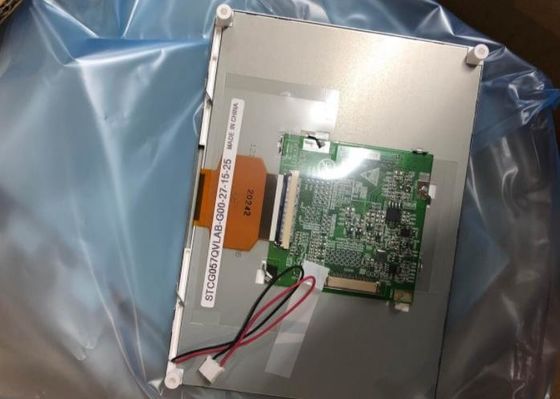

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | STCG057QVLAB-G00 |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Light Source: | WLED , 40K Hours , W/O Driver | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | STCG057QVLAB-G00 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.370 | Support Color | 262K (6-bit) |
| Color Temperature | 5570K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 75% coverage |
| Adobe RGB | 60% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.8(H) mm |
| Bezel Opening | 118.4(W)×89.0(H) mm | Overall Depth | 5.7/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Mass | 155g (Typ.) | Surface | Glare (Haze 0%) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Signal Electrical : | Input Current | 80/110mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 08-6210-033-340-800+ | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 100mA (Typ.) | Input Voltage | 12/13V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | PHR-3 | 1 pcs | 2.0 mm | 3 pins | BLE-3PINS-ANC | |
| Backlight Driver : | No | |||||
