Product Details:
|

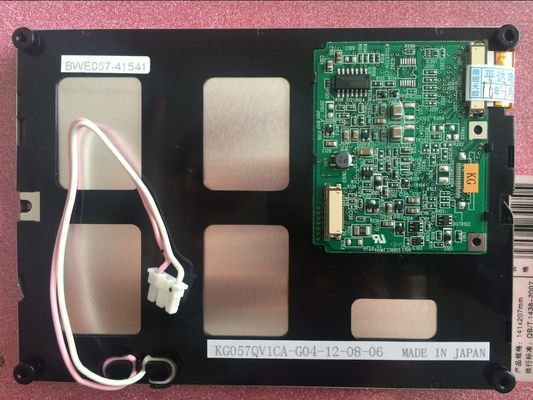

| BRAND: | Kyocera | MODEL NUMBER: | KG057QV1CA-G04 |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 260 Cd/m² (Typ.) | Signal Interface: | Parallel Data (4-bit) , 20 Pins Connector |
| Lamp Type: | 1 Pcs CCFL , 58K Hours , Without Driver | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| KG057QV1CA-G04 | STN-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320×240, QVGA | Rectangle | 0.360×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.18×86.38 mm | 119.4×90.6 mm | 144×104.8 mm | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 175g | - | Glare (Haze 0%) | ||
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 260 cd/m² (Typ.) | STN, Blue mode (Negative), Transmissive | 4:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 45/45/20/40 (Typ.)(CR≥10) | 380/120 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6477K | Monochrome | X:0.313; Y:0.330 |
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 58K(Typ.) | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 330V (Typ.) | 3.0/4.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/100KHz (Min./Max.) | 530/790V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VDD) | 42.0/29.0mA (Typ./Max.)(IDD) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (4-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 20 pins | 0.5 mm | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
