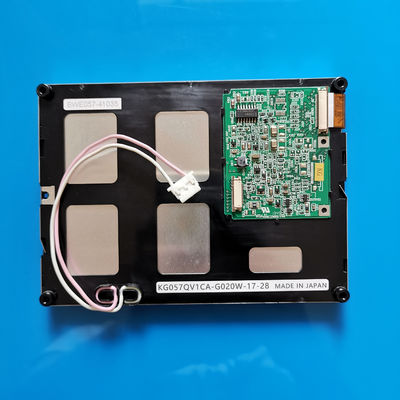

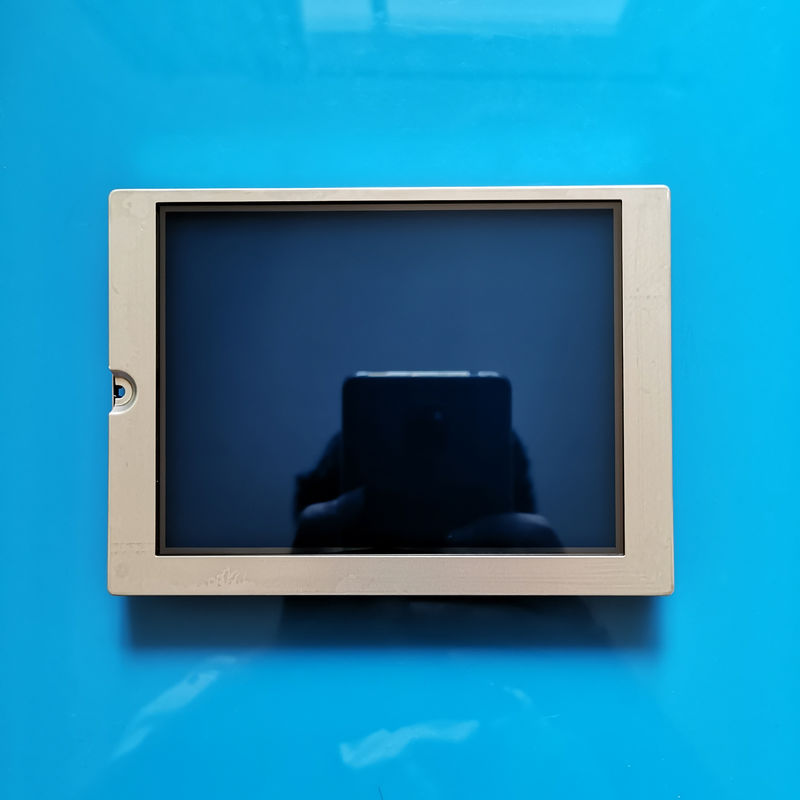

Product Details:
|
| MODEL NUMBER: | KG057QV1CA-G020W | BRAND: | Kyocera |
|---|---|---|---|
| RESOLUTION: | 320×240RGB | SIZE: | 5.7INCH |
| BRIGHTNESS: | 260 Cd/m² (Typ.) | Backlight: | 1 Pcs CCFL , 58K Hours , Optional |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Info : | Panel Brand | Panel Model | KG057QV1CA-G020W | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | STN-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | - | Storage Temp. | - |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 320×240 [QVGA] | Dot Pitch | 0.360×0.360 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.18×86.38 mm (H×V) | Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dim. | 144×104.8 mm (H×V) | Outline Depth | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
| Other Features : | Weight | 175g | Surface | Glare (Haze 0%) |
| Basic Information : | Brightness | 260 cd/m² (Typ.) | Contrast Ratio | 4:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) | Optical Mode | STN, Blue mode (Negative), Transmissive | |
| Viewing Direction | - | Response Time | 380/120 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | Monochrome |
| Color Temperature | 6638K | White Uniformity | - |
| Frame Frequency : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 58K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 330V (Typ.) | Current Input | 3.0/4.0/6.0mA (Min./Typ./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Kick-off Voltage | 530/795V (Typ./Max.) | |||

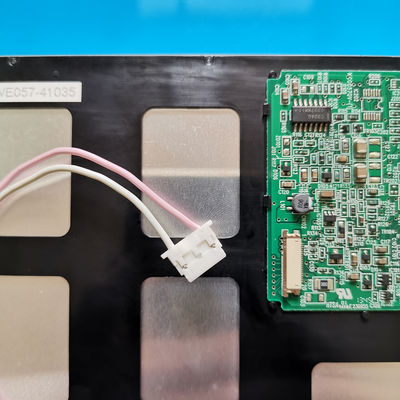

| Interface Features : | Type | Connector | Position | - | Lamp Driver | Optional |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel Data (4-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VDD) | Current Input | 42.0/29.0mA (Typ.)(3.3V/5.0V)(IDD) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 0.5 mm | 20 pins | 1 pcs | ||
