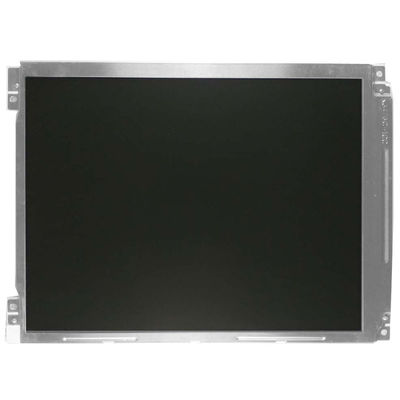

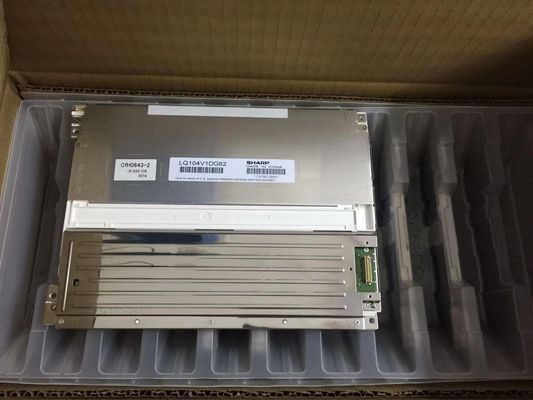

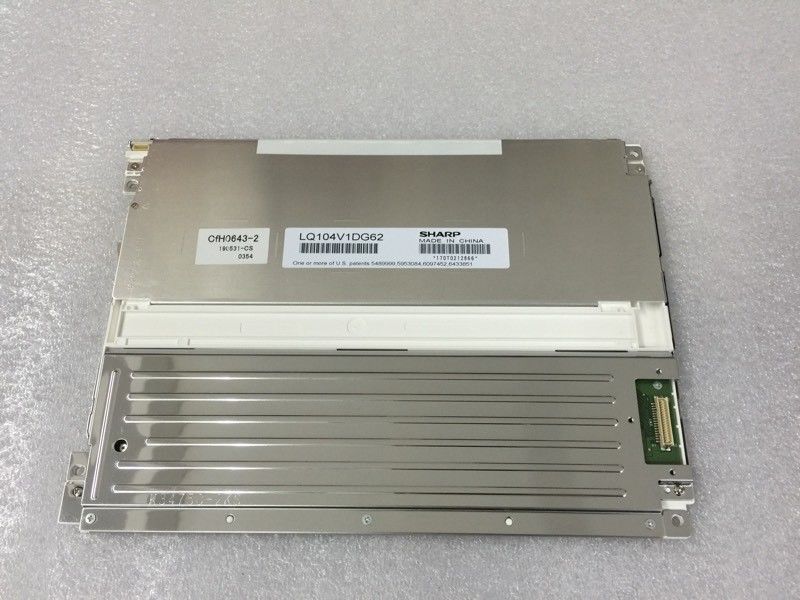

Product Details:
|
| Diagonal Size: | 10.4 Inch | Model: | LQ104V1DG62 |
|---|---|---|---|
| Luminance: | 550cd/m² | Pixel Format: | 640(RGB)×480 [VGA] 76PPI |
| Viewing Angle: | 70/70/50/60 (Typ.) | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) | Light Source: | WLED [6S3P] , 50K Hours , W/O Driver |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104V1DG74 LQ104V1DG72 LQ104V1DG71 LQ104V1DG62 LQ104V1DG61
| Basic Detail : | Manufacturer | Model Name | LQ104V1DG62 1 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 550 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.35 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 246.5(W)×179.4(H) mm |
| Bezel Opening | 214.6(W)×162.4(H) mm | Overall Depth | 12.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Detail : | Mass | 580g (Max.) | Surface | Antiglare, Hard coating (3H), Antireflection |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 5.2W |
| Signal Electrical : | Input Current | 200/130mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VIL≤0.8V; 2.1V≤VIH | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9MA-31P-1V(32) | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 6S3P | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/100mA (Typ./Max.) | Input Voltage | 18.6/21.6V (Typ./Max.) | ||
| Consumption | 4.5/6.5W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SRSS-TB(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-AAACCC | |
| Backlight Driver : | No | |||||
LQ104V1DG62 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×12.5(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 580g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104V1DG62 can provides 550 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
